| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,000 pcs
|
21000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,150 pcs
|
2150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

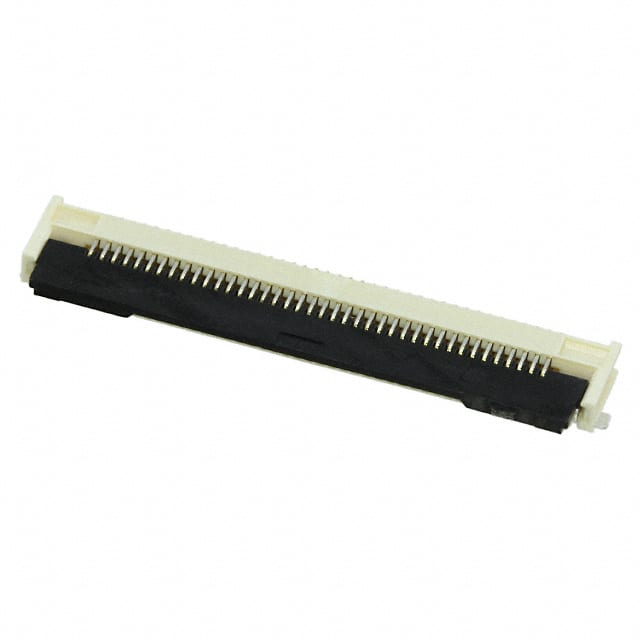

The Molex 5051104091 is a 40-position FFC/FPC connector from the 505110 series with a 0.5mm pitch. It features a surface mount, right angle orientation with bottom contacts for flexible flat cable. The connector employs a flip lock actuator for secure cable retention and zero insertion force for easy cable insertion. Solder retention aids board mounting stability. The housing is made of liquid crystal polymer (LCP) with glass filling, rated UL94 V-0. The actuator is polyamide (nylon) with glass filling. Contacts are phosphor bronze with gold plating on both contact and solder tail areas, with nickel underplating. Electrically, the connector is rated for 50V and 0.5A with a maximum contact resistance of 40 mOhm and minimum insulation resistance of 50 MOhm. Dielectric withstanding voltage is 125V AC. Operating temperature range is -40°C to 105°C. The component is suitable for applications requiring compact, reliable interconnections such as automotive infotainment, consumer electronics, and data communications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.96 | $1.96 |
| 10+ | $1.67 | $1.67 |
| 25+ | $1.49 | $1.49 |
| 100+ | $1.42 | $1.42 |
| 250+ | $1.33 | $1.33 |
| 500+ | $1.27 | $1.27 |
| 1,000+ | $1.25 | $1.25 |
| 3,000+ | $1.20 | $1.20 |
| 6,000+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
0.50mm.
0.5A.
50V.
Surface Mount, Right Angle.
Flip lock.
-40°C to 105°C.
