| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

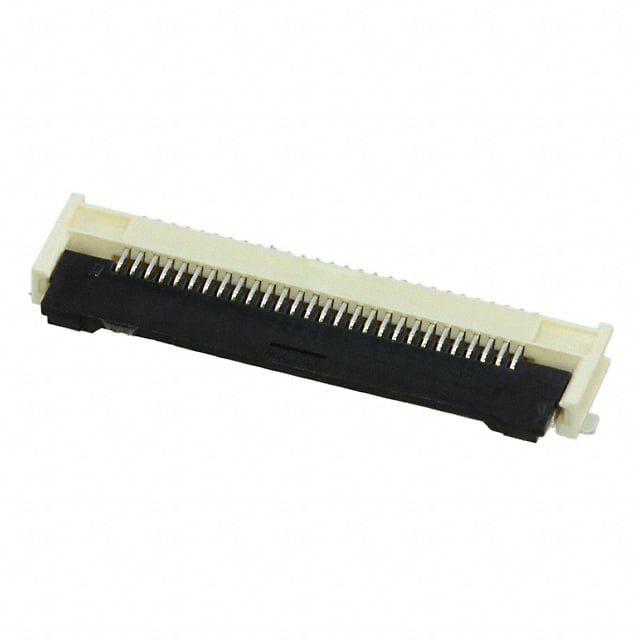

The Molex 5051102891 is a 28-position FFC/FPC connector designed for compact, space-constrained applications. It features a 0.50mm pitch and a right angle surface mount orientation, making it ideal for low-profile PCB designs. The connector uses a bottom contact configuration with gold-plated phosphor bronze contacts, ensuring reliable electrical performance.
The connector includes a flip lock actuator for secure cable retention and incorporates zero insertion force (ZIF) operation, reducing wear on the cable and connector during mating. The housing is made of liquid crystal polymer (LCP) with glass filling, and the actuator is constructed from polyamide (PA) / nylon, also glass filled. Both materials are rated UL94 V-0 for flammability.
With a voltage rating of 50V and an operating temperature range of -40°C to 105°C, this connector is suitable for a wide variety of consumer and industrial electronic devices. The solder retention feature enhances mechanical stability during assembly and operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.49 | $1.49 |
| 10+ | $1.27 | $1.27 |
| 25+ | $1.14 | $1.14 |
| 100+ | $1.08 | $1.08 |
| 250+ | $1.02 | $1.02 |
| 500+ | $0.96 | $0.96 |
| 1,000+ | $0.95 | $0.95 |
| 3,000+ | $0.92 | $0.92 |
| 6,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
28 positions.
0.50mm (0.020").
Surface mount, right angle.
50V.
-40°C to 105°C.
Flip lock (ZIF).
RoHS3 compliant (unverified).
