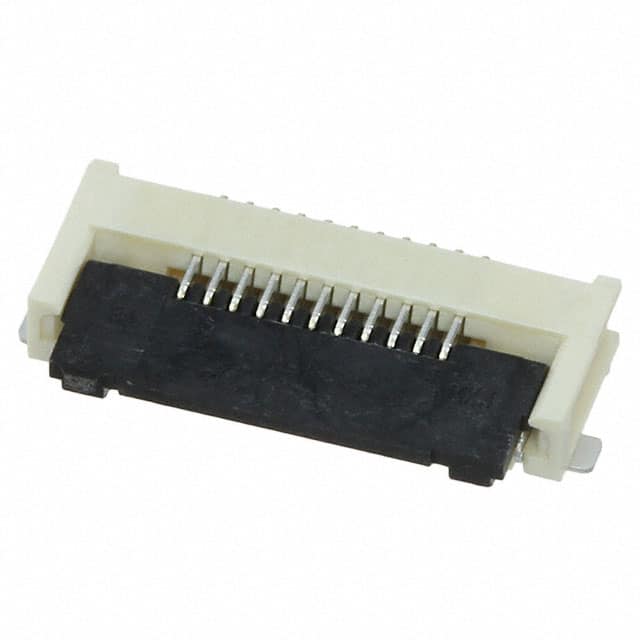

5051101192 Molex 5051101192 is a right-angle surface-mount FFC/FPC connector with 11 positions at 0.5mm pitch. It features ZIF (Zero Insertion Force) flip lock, gold-plated phosphor bronze contacts, and supports FFC/FPC cables with tabbed tapered ends.
Mfr Part #:

5051101192

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 5051101192 is a right-angle surface-mount FFC/FPC connector with 11 positions at 0.5mm pitch. It features ZIF (Zero Insertion Force) flip lock, gold-plated phosphor bronze contacts, and supports FFC/FPC cables with tabbed tapered ends.
✓ Total Stock: 150 pcs
$ Price Range: $0.44 - $0.80

5051101192 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5051101192 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

5051101192 Description

Short technical summary and product information.

The Molex 5051101192 is an 11-position FFC/FPC connector designed for surface-mount, right-angle mounting. It features a 0.5mm pitch and accepts FFC/FPC cables with a thickness of 0.30mm. The connector uses a Zero Insertion Force (ZIF) mechanism with a flip-lock actuator for secure cable retention. Contacts are made of phosphor bronze with gold finish, ensuring reliable electrical connections. The housing is constructed from liquid crystal polymer (LCP) with glass filling, and the actuator is polyamide (nylon) with glass filling. The connector is rated for 50V and has an operating temperature range of -40°C to 105°C. It is UL94 V-0 rated for flammability. The solder retention feature aids in robust PCB mounting. This connector is suitable for applications requiring compact, low-profile interconnections in consumer electronics, automotive, and industrial equipment.

5051101192 Quick Information

Product Type: FFC/FPC Connector Assembly
Series: 505110
Canonical Name: Molex 5051101192 — 11 Position 0.5mm Pitch FFC/FPC Connector, Right Angle, ZIF
Subcategory: FFC/FPC Connector Assemblies

5051101192 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5051101192 Estimated Pricing

Qty Low High
1+ $0.80 $0.80
10+ $0.68 $0.68
25+ $0.61 $0.61
100+ $0.58 $0.58
250+ $0.54 $0.54
500+ $0.52 $0.52
1,000+ $0.50 $0.50
3,000+ $0.46 $0.46
6,000+ $0.44 $0.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

5051101192 Features

  • 11 positions with 0.5mm pitch spacing.
  • Right-angle surface mount configuration.
  • Zero insertion force flip-lock actuator.
  • Gold-plated phosphor bronze contacts.
  • Rated for 50V and -40°C to 105°C.

5051101192 Applications

  • Suitable for compact consumer electronics.
  • Used in automotive infotainment systems.
  • Ideal for industrial control interfaces.

5051101192 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on this connector?

11 positions.

What is the pitch of this FFC/FPC connector?

0.50mm (0.020").

What is the voltage rating of the Molex 5051101192?

50V.

What mounting type does this connector use?

Surface Mount, Right Angle.

What is the operating temperature range?

-40°C to 105°C.

What is the contact finish?

Gold.

What locking feature does this connector have?

Flip Lock, Backlock.
