| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Pin Diameter | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Flange Diameter | |
| Length | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Socket Depth | |
| Tail Type | |
| Tape & Reel | |
| Termination | |
| Termination Style |

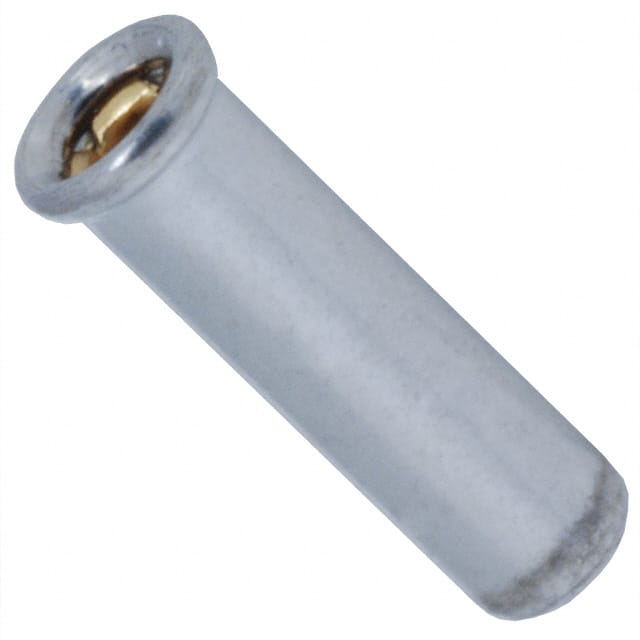

The TE Connectivity 5050865-3 is a PC pin receptacle designed for through-hole mounting. It accepts pin diameters ranging from 0.034" to 0.041" (0.86mm to 1.04mm). The contact is made of beryllium copper with a gold finish of 30.0µin (0.76µm) for reliable electrical performance. The overall length is 6.60mm (0.260") with a socket depth of 6.27mm (0.247"). The flange diameter is 2.26mm (0.089") and the mounting hole diameter is 1.83mm (0.072"). Termination is via solder. This component is suitable for applications requiring a secure pin connection in a compact form factor. The no-tail design allows for flush mounting. Typical applications include test points, interconnects, and prototyping.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 10+ | $0.68 | $0.68 |
| 25+ | $0.68 | $0.68 |
| 100+ | $0.65 | $0.65 |
| 250+ | $0.60 | $0.60 |
| 500+ | $0.55 | $0.55 |
| 1,000+ | $0.50 | $0.50 |
| 2,000+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts pin diameters from 0.034" to 0.041" (0.86mm to 1.04mm).
Solder termination.
Beryllium copper contact with a gold finish of 30.0µin (0.76µm).
6.60mm (0.260").
0.247" (6.27mm).
Through-hole mounting (inferred from mounting hole diameter and solder termination).
