| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

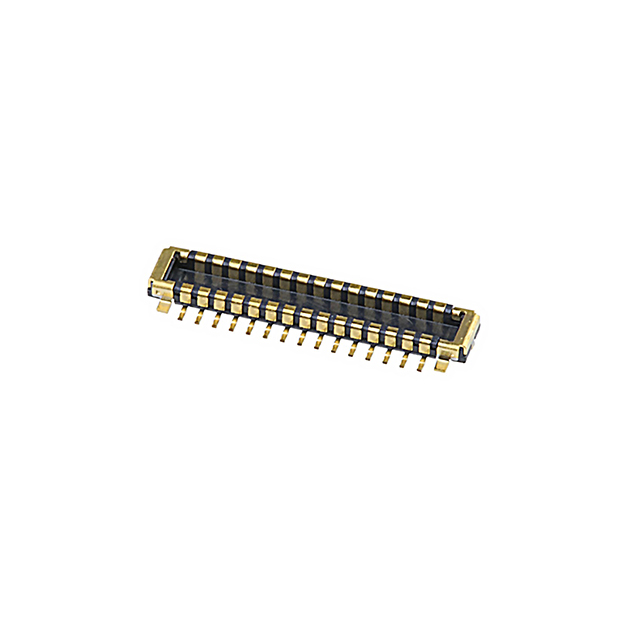

The Molex 5050703042 is a SlimStack series plug connector featuring 30 positions arranged in 2 rows with a 0.35mm pitch. This connector uses outer shroud contacts and is designed for surface mount mounting, making it suitable for high-density board-to-board applications.
The connector has a mated stacking height of 0.6mm and a height above board of just 0.48mm, enabling compact, low-profile designs. The contacts are finished with 4.00µin (0.100µm) of gold, providing reliable electrical performance. The connector includes pick and place and solder retention features to facilitate automated assembly.
This component is RoHS3 compliant and has an MSL of 1 (unlimited), with a REACH unaffected status. It is ideal for use in space-constrained electronic devices requiring a reliable, low-profile interconnection.
| Qty | Low | High |
|---|---|---|
| 64,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.35mm (0.014").
It has 30 positions arranged in 2 rows.
It is a surface mount connector.
The contacts are finished with 4.00µin (0.100µm) of gold.
The mated stacking height is 0.6mm.
