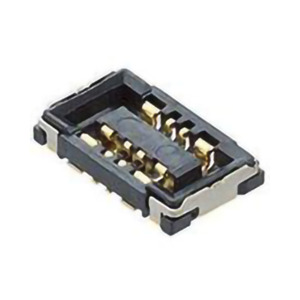

The Molex 505004-0810 is a board-to-board receptacle connector from the 505004 series. It features 8 positions arranged in 2 rows with a 0.4mm pitch, making it suitable for high-density interconnections.
Mechanically, the connector uses female contacts, typically copper alloy with gold plating. The insulation material is liquid crystal polymer (LCP) for high-temperature SMT processing. The operating temperature range is -40°C to +105°C. Electrical ratings include 0.5A per contact current and 50V voltage rating.
Mounting is surface mount, and the component is packaged in tape and reel (embossed tape) with a standard quantity of 1000 units per reel.
Compliance with RoHS3, MSL Level 1 (unlimited), and REACH unaffected is claimed by the manufacturer, though unverified.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.35 | $0.35 |
| 6,000+ | $0.34 | $0.34 |
| 12,000+ | $0.32 | $0.32 |
| 24,000+ | $0.30 | $0.30 |
| 36,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (4 power and 4 signal).
0.4 mm.
0.5 A.
50 V.
Surface Mount.
-40°C to +105°C.
Gold.
