| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

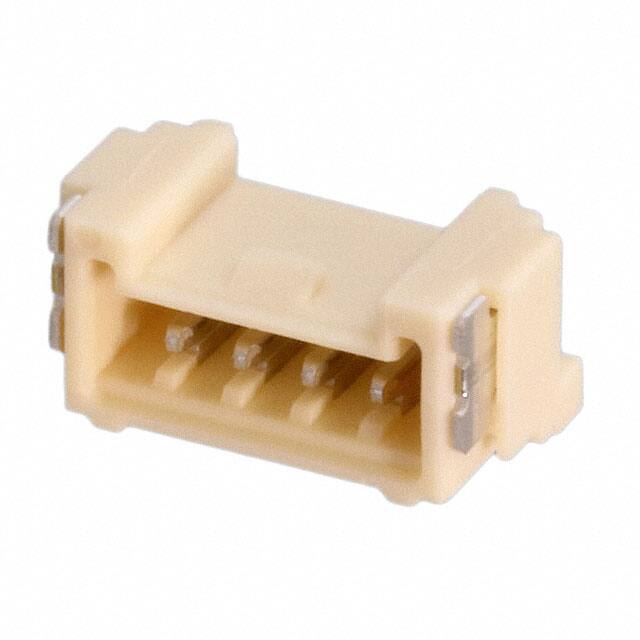

The Molex 5041940470 is part of the Micro-Lock 1.25mm pitch system, designed for tight-packaging applications. It features a 4-position, single row, shrouded 4-wall header with male blade contacts. The connector is rated for 1.5A current and has a UL94 V-0 flammability rating. The insulation is natural color glass-filled nylon. The contact finish is tin with a thickness of 39.4µin (1.00µm). The connector includes a latch lock fastening type and solder retention feature. The Micro-Lock system offers a compact size and low profile, with low insertion force and positive locking. It is suitable for consumer electronics, networking, and data communications applications. The connector is surface mount termination with solder.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
| 10+ | $0.99 | $0.99 |
| 100+ | $0.84 | $0.84 |
| 500+ | $0.75 | $0.75 |
| 1,200+ | $0.67 | $0.67 |
| 2,400+ | $0.65 | $0.65 |
| 4,800+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
1.25mm (0.049").
1.5A.
Surface Mount.
Latch Lock.
Yes, shrouded 4-wall.
Tin, 39.4µin thickness.
