| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Number of Circuits | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Configuration | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

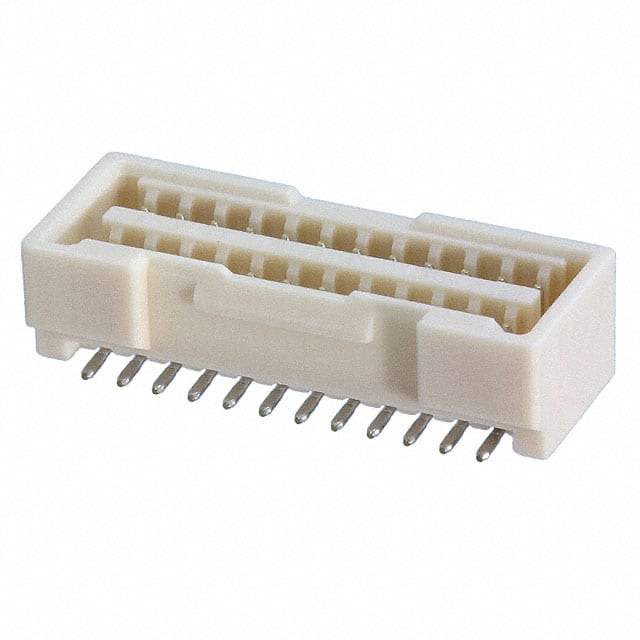

The Molex 5041872470 is a 24-position, dual row, surface mount header from the Micro-Lock 1.25mm pitch system. This compact and low-profile connector is designed for space-constrained applications requiring a secure positive-lock interface. The shrouded 4-wall design protects pins and terminals during mating, while the outer thumb latch provides two locking points for reliable retention and audible click feedback.
Key specifications include a 1.25mm (0.049") pitch, 1.5A current rating, and tin-plated brass contacts with 39.4µin (1.00µm) thickness. The header is rated for board-to-cable/wire applications and features a glass-filled polyamide (PA, Nylon) insulator with UL94 V-0 flammability rating. The housing is made from low-halogen material, meeting environmental standards.
The Micro-Lock system offers crash-proof pin protection, polarization guides, and low insertion force. It is ideal for consumer electronics (LED TVs, home audio, set-top boxes), network equipment (hubs, routers, modems), and data communications (desktop PCs, storage).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
| 10+ | $1.06 | $1.06 |
| 25+ | $1.02 | $1.02 |
| 100+ | $0.95 | $0.95 |
| 250+ | $0.87 | $0.87 |
| 700+ | $0.67 | $0.67 |
| 2,100+ | $0.58 | $0.58 |
| 4,900+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions, all loaded, in a dual row configuration.
1.25mm (0.049 inches).
1.5A per contact.
Surface mount (SMD) with solder termination.
Latch lock for secure mating.
