| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,857 pcs
|
1857 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,857 pcs
|
1857 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

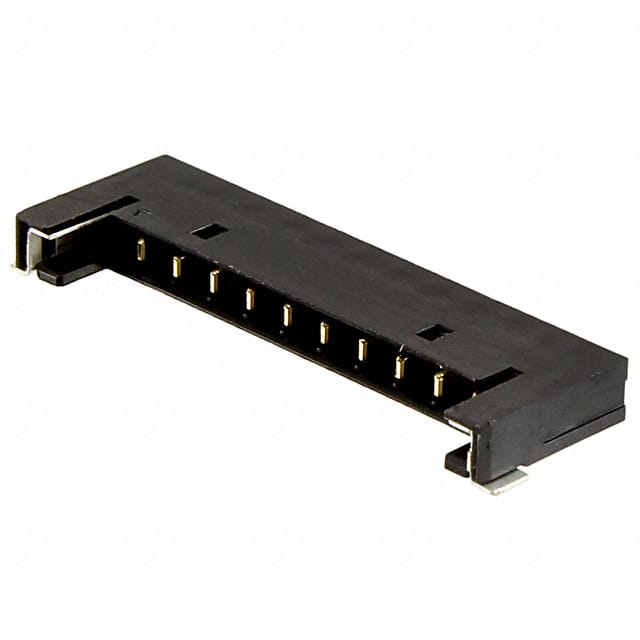

The Molex 5040501091 is a 10-position, single row, shrouded header connector designed for board-to-cable/wire applications. It features a 1.50mm pitch and surface mount, right angle mounting style with solder termination. The connector is fully shrouded with four walls and includes a detent lock for secure mating. Contacts are made of copper alloy with gold finish (3.94µin) and rectangular shape. The insulation is black polyamide (nylon) with a height of 2.00mm, rated UL94 V-0. Electrical ratings include 150V voltage and current rating varies by wire gauge. Operating temperature range is -40°C to 105°C. Solder retention feature aids in reliable PCB attachment. This connector is suitable for compact, high-density interconnect applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
| 10+ | $1.70 | $1.70 |
| 100+ | $1.45 | $1.45 |
| 500+ | $1.29 | $1.29 |
| 1,000+ | $1.23 | $1.23 |
| 2,700+ | $1.09 | $1.09 |
| 5,400+ | $1.05 | $1.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
1.50mm.
150V.
Surface Mount, Right Angle.
-40°C to 105°C.
Gold, 3.94µin thickness.
UL94 V-0.
