| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
110 pcs
|
110 pcs | On Request | 1 | On Request | On Request | 2147 | On Request | On Request | |
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:24:00 | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

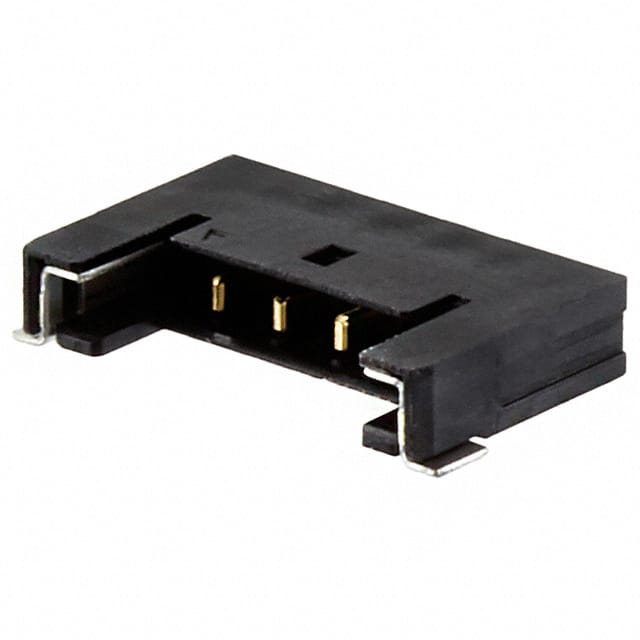

The Molex 5040500491 is a 4-position, 1.5mm pitch header designed for board-to-cable/wire applications. It features a surface mount, right angle mounting style with solder termination, and includes a solder retention feature for reliable board attachment. The connector uses a shrouded 4-wall housing with a detent lock fastening type to ensure secure mating.
The header is constructed with a black polyamide (PA) nylon insulator, rated UL94 V-0 for flammability, and copper alloy contacts with a gold finish (0.100µm thickness). The contact shape is rectangular male blade. The operating temperature range is -40°C to 105°C, and the voltage rating is 150V. Current rating varies by wire gauge.
This header is suitable for applications requiring a compact, low-profile connector in automated assembly processes. The right angle orientation allows for space-saving designs on PCBs. The 4-wall shrouding provides protection for the contacts and helps guide mating connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.03 | $1.03 |
| 10+ | $0.88 | $0.88 |
| 100+ | $0.75 | $0.75 |
| 500+ | $0.67 | $0.67 |
| 1,000+ | $0.66 | $0.66 |
| 2,700+ | $0.63 | $0.63 |
| 5,400+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
1.50mm.
Varies by wire gauge.
150V.
Surface mount, right angle.
-40°C to 105°C.
Gold, 0.100µm thickness.
