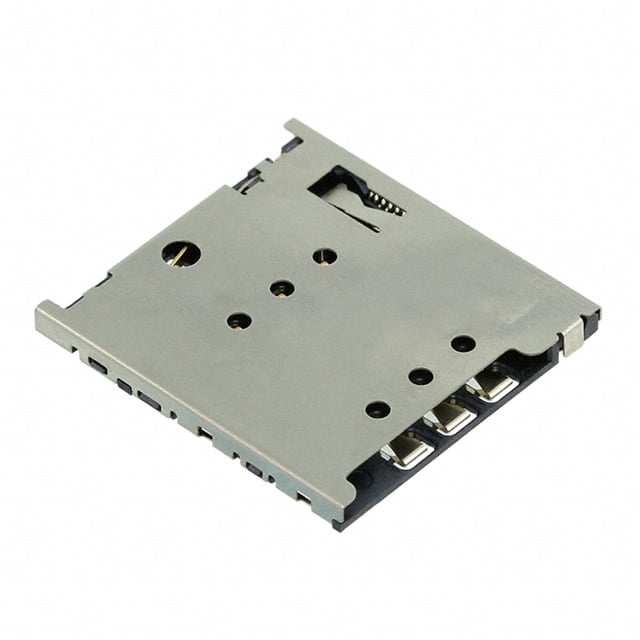

5039600694 Micro SIM card connector from Molex with push-push insertion/removal, right angle surface mount, and 8 positions (6+2) with switch feature.
Mfr Part #:

5039600694

Available from 2 distributors
Mfr Name: Molex
Molex
Micro SIM card connector from Molex with push-push insertion/removal, right angle surface mount, and 8 positions (6+2) with switch feature.
✓ Total Stock: 1,464 pcs

5039600694 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
732 pcs
On Request
732 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
732 pcs
On Request
732 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5039600694 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Insertion, Removal Method
Mounting Feature
Mounting Type
Number of Positions
Tape & Reel
View Similar Products (0)

5039600694 Description

Short technical summary and product information.

The Molex 5039600694 is a Micro SIM card connector designed for reliable, space-efficient integration into mobile devices and IoT modules. It supports push-push (push in, push out) method for easy card insertion and removal, with a right-angle surface mount configuration that minimizes board footprint.



This connector features 8 positions arranged as 6 + 2, including an integrated switch for card detection. The gold contact finish (19.7µin / 0.50µm) ensures excellent conductivity and corrosion resistance over repeated cycles. The height above board is a low 1.42mm, enabling slim device designs.



RoHS3 compliant and rated with MSL 1 (unlimited floor life), this part is suitable for high-volume SMT assembly. It is designed for use with standard Micro SIM cards and is commonly applied in cellular modules, handheld terminals, and other embedded systems requiring secure SIM connectivity.

5039600694 Quick Information

Product Type: SIM Card Connector
Canonical Name: Micro SIM Card Connector, Push-Push, Right Angle, Surface Mount
Subcategory: Push-Push with Switch

5039600694 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5039600694 Features

  • Micro SIM card form factor.
  • Push-push insertion and removal mechanism.
  • Right angle surface mount design.
  • 8 positions with integrated switch.
  • Gold contact finish for reliability.

5039600694 Applications

  • Used in mobile phones and tablets.
  • Ideal for IoT module SIM interfaces.
  • Suitable for space-constrained designs.
  • Works with standard Micro SIM cards.

5039600694 FAQs

7 frequently asked questions generated from this part’s specifications.
What type of card does this connector accept?

Micro SIM cards.

What is the mounting style?

Surface Mount, Right Angle.

How many positions does the connector have?

8 positions (6 + 2).

What is the insertion and removal method?

Push In, Push Out (push-push).

Does the connector feature a switch?

Yes, it includes a switch.

What is the contact finish?

Gold finish with 19.7µin (0.50µm) thickness.

What is the height of the connector above the board?

0.056" (1.42mm).
