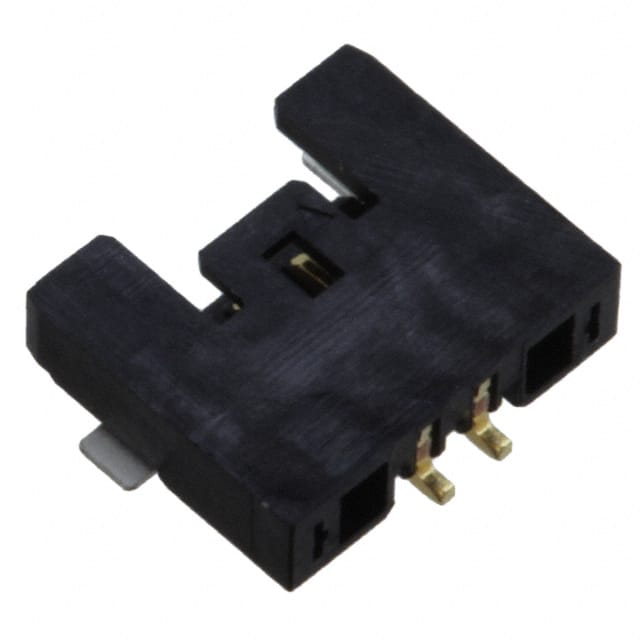

The Molex 5037630291 is a 2-position, 1.00mm pitch header connector from the Pico-Lock wire-to-board system. It features male pin contacts with gold plating, a surface mount right angle orientation, and a shrouded 4-wall design with detent locking for secure mating. The connector is rated for 3.5A per circuit and 150V, with a maximum contact resistance of 20 milliohms. The insulation is black polyamide (PA) with a UL94 V-0 flammability rating, and the operating temperature range is -40°C to 105°C. Solder retention features provide additional mechanical stability on the PCB.
Typical applications include automotive infotainment, consumer electronics such as LED/LCD TVs and notebooks, industrial smart meters and factory automation, and telecommunications equipment. The header is surface mount compatible with a right angle orientation, making it suitable for space-constrained designs. The ultra-low profile mated height and side positive locks offer visual mating assurance and secure retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 10+ | $0.67 | $0.67 |
| 25+ | $0.67 | $0.67 |
| 100+ | $0.57 | $0.57 |
| 250+ | $0.51 | $0.51 |
| 1,000+ | $0.46 | $0.46 |
| 3,000+ | $0.43 | $0.43 |
| 6,000+ | $0.41 | $0.41 |
| 9,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 2 positions.
The pitch is 1.00mm (0.039 inches).
The maximum current rating per circuit is 3.5A, subject to derating.
The voltage rating is 150V.
The mounting type is surface mount, right angle.
The operating temperature range is -40°C to 105°C.
It uses a detent lock for secure mating.
