503566-2502 The Molex 503566-2502 is a 25-way FPC connector with a 0.3mm pitch. It features a right-angle orientation and bottom contact position for surface mounting.
Mfr Part #:

503566-2502

Available from 1 distributors
Mfr Name: Molex
Molex
The Molex 503566-2502 is a 25-way FPC connector with a 0.3mm pitch. It features a right-angle orientation and bottom contact position for surface mounting.
✓ Total Stock: 81 pcs
$ Price Range: $0.10

503566-2502 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
81 pcs
On Request
81 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

503566-2502 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Country of Origin
Industrial Grade
Medical Grade
Military Grade
Orientation
View Similar Products (0)

503566-2502 Description

Short technical summary and product information.

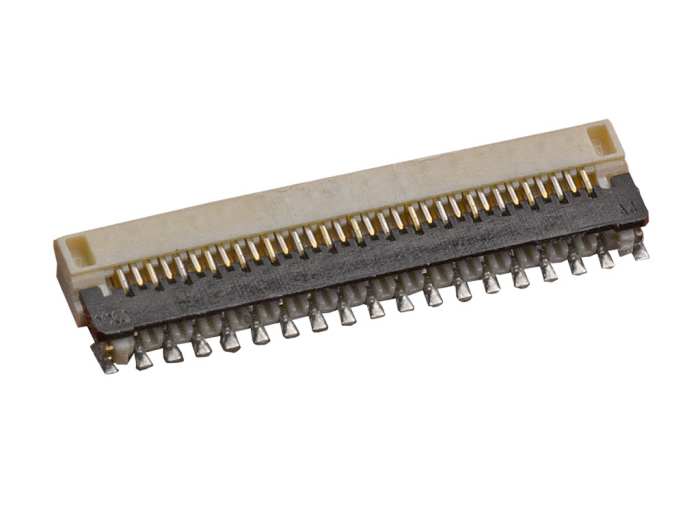

This Molex 503566-2502 is a 25-contact FPC (Flexible Printed Circuit) connector designed for surface mounting applications. It offers a compact 0.3mm pitch, making it suitable for space-constrained designs. The connector features a right-angle orientation and bottom contact termination.



Key electrical specifications include a current rating of 0.3A and an operating voltage of 5V. The operating temperature range is from -40°C to 105°C. The contacts are made of phosphor bronze with gold over nickel plating for reliable connectivity. The housing is constructed from durable Liquid Crystal Polymer.



This FPC connector is designed for efficient and secure connections in various electronic devices. Its robust construction and precise specifications ensure performance in demanding applications.

503566-2502 Quick Information

Product Type: FPC Connector
Canonical Name: Molex 503566-2502 FPC Connector
Subcategory: FPC Connector

503566-2502 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

503566-2502 Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

503566-2502 Features

  • 25-way FPC connector with 0.3mm pitch.
  • Right-angle orientation for surface mounting.
  • Bottom contact termination for efficient connection.
  • Operating temperature range of -40°C to 105°C.
  • Phosphor bronze contacts with gold over nickel plating.

503566-2502 Applications

  • Ideal for compact electronic devices.
  • Suitable for flexible circuit board connections.
  • Used in consumer electronics applications.
  • Enables space-saving interconnect solutions.

503566-2502 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the Molex 503566-2502 FPC connector?

The pitch of the Molex 503566-2502 FPC connector is 0.3mm.

How many contacts does the Molex 503566-2502 connector have?

The Molex 503566-2502 connector has 25 contacts.

What is the current rating for the 503566-2502 FPC connector?

The current rating for the 503566-2502 FPC connector is 0.3A.

What is the operating voltage of the Molex 503566-2502 connector?

The operating voltage of the Molex 503566-2502 connector is 5V.

What is the operating temperature range for this Molex FPC connector?

The operating temperature range for this Molex FPC connector is -40°C to 105°C.

What type of mounting does the Molex 503566-2502 connector use?

The Molex 503566-2502 connector uses surface mounting.
