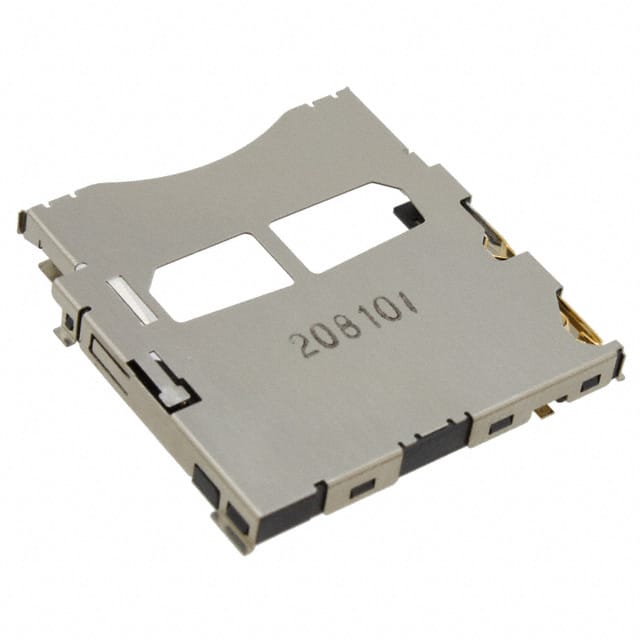

5035000991 SD card connector from Molex with push-push ejection mechanism. Features right angle surface mount design, 12 positions (9+3), and gold-plated contacts.
Mfr Part #:

5035000991

Available from 2 distributors
Mfr Name: Molex
Molex
SD card connector from Molex with push-push ejection mechanism. Features right angle surface mount design, 12 positions (9+3), and gold-plated contacts.
✓ Total Stock: 484 pcs
$ Price Range: $3.20

5035000991 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
445 pcs
On Request
445 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
39 pcs
On Request
39 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5035000991 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Features
Height Above Board
Insertion, Removal Method
Mounting Feature
Mounting Type
Number of Positions
Tape & Reel
Termination Style
View Similar Products (0)

5035000991 Description

Short technical summary and product information.

The Molex 5035000991 is a Secure Digital (SD) card connector designed for push-push insertion and ejection. It is a surface mount, right angle connector that saves board space in compact electronic designs. The connector includes a card detection switch and features gold-plated contacts for reliable connectivity. With 12 positions arranged as 9+3, it supports standard SD card interfaces. The height above board is 0.116 inches (2.95 mm), making it suitable for low-profile applications. This connector is listed as RoHS3 compliant and has an MSL rating of 1 (unlimited). It is commonly used in portable devices, embedded systems, and consumer electronics requiring SD card expansion.

5035000991 Quick Information

Product Type: SD Card Connector
Canonical Name: Molex 5035000991 SD Card Connector, Push-Push, Right Angle, SMD
Subcategory: Push-Push Right Angle Connector

5035000991 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5035000991 Estimated Pricing

Qty Low High
1+ $3.20 $3.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

5035000991 Features

  • Push-push insertion and ejection mechanism.
  • Right angle surface mount design.
  • Gold plated contacts for durability.
  • Includes card detection switch.
  • 12 positions for SD card interface.

5035000991 Applications

  • Used in portable consumer electronics.
  • Ideal for SD card expansion slots.
  • Suitable for embedded systems with memory cards.
  • Compact design for space-constrained boards.

5035000991 FAQs

6 frequently asked questions generated from this part’s specifications.
What type of card does this connector accept?

Secure Digital (SD) cards.

What is the mounting style?

Surface Mount, Right Angle.

How many positions does it have?

12 positions (9 + 3).

What is the insertion and removal method?

Push In, Push Out (push-push).

Does it include a switch?

Yes, it includes a card detection switch.

What is the contact finish?

Gold.
