| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39,043 pcs
|
39043 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
188 pcs
|
188 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

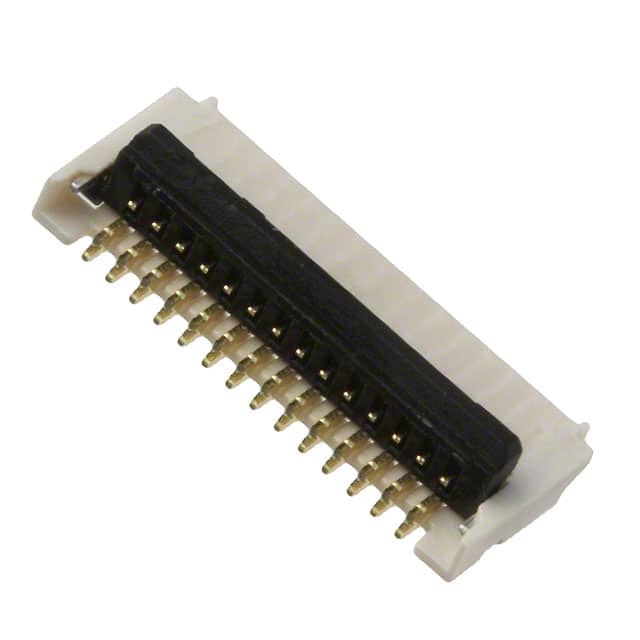

The Molex 5034801400 is a 14-position FFC/FPC connector designed for compact, high-density interconnects. It features a 0.5mm pitch and right angle surface mount termination, making it suitable for space-constrained PCB layouts. The connector accepts both FFC and FPC cables with a thickness of 0.30mm, and supports straight or tapered cable ends.
Contacts are made of phosphor bronze with gold plating, ensuring reliable electrical performance and corrosion resistance. The housing is constructed from liquid crystal polymer (LCP) with glass filling, and the actuator is glass-filled nylon (polyamide). The locking mechanism uses a flip lock and backlock design for secure cable retention.
Electrical rating is 50V, and the operating temperature range is -40°C to 85°C. The connector includes solder retention features for improved mechanical stability during assembly. Material flammability ratings are UL94 V-0 and UL94 HB.
This connector is commonly used in consumer electronics, portable devices, and other applications requiring a reliable, low-profile FFC/FPC interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
| 10+ | $1.04 | $1.04 |
| 25+ | $0.93 | $0.93 |
| 100+ | $0.88 | $0.88 |
| 250+ | $0.83 | $0.83 |
| 500+ | $0.79 | $0.79 |
| 1,000+ | $0.77 | $0.77 |
| 3,000+ | $0.75 | $0.75 |
| 6,000+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 14 positions.
The pitch is 0.50mm (0.020 inches).
The voltage rating is 50V.
It uses surface mount, right angle mounting.
The operating temperature range is -40°C to 85°C.
The contact finish is gold.
The locking feature is flip lock and backlock.
