| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,290 pcs
|
2290 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,405 pcs
|
1405 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Location | |
| Contact Material | |
| FFC, FCB Thickness | |
| FFC/FPC Thickness | |
| Features | |
| Flammability Rating | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

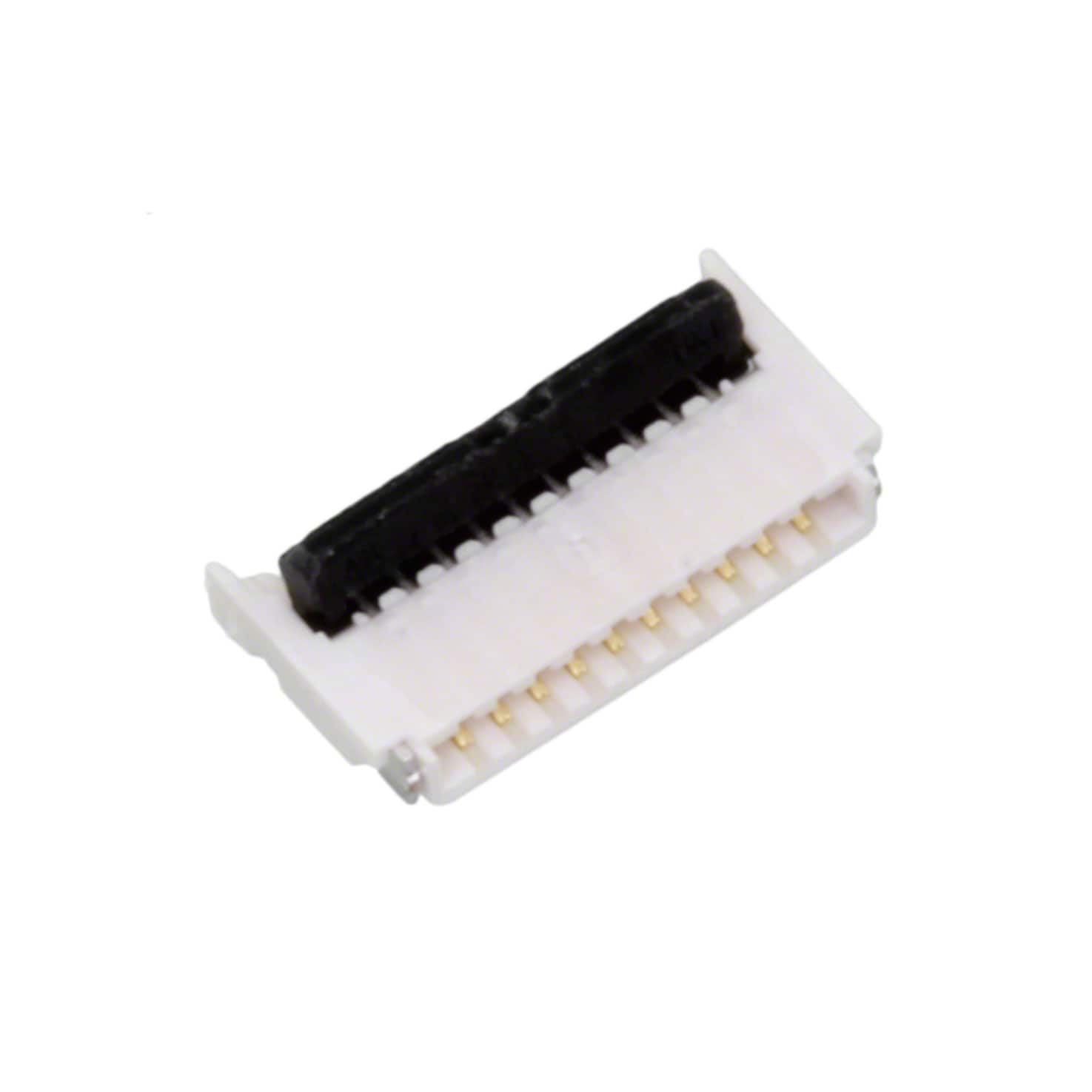

The Molex 5034801000 is a 10-position FFC/FPC connector featuring a 0.5mm pitch and a surface mount, right-angle mounting configuration. It accepts FFC or FPC cables with a thickness of 0.30mm and supports straight or tapered cable ends. Contacts are located on both top and bottom for flexible cable insertion.
The connector is housed in a glass-filled liquid crystal polymer (LCP) with a glass-filled polyamide actuator, providing a durable flip-lock and backlock mechanism for secure cable retention. Electrical performance includes a 50V voltage rating and gold-plated phosphor bronze contacts. Solder retention features aid in reliable PCB mounting.
The housing and actuator are rated UL94 V-0 and UL94 HB for flammability. The component has an operating temperature range of -40°C to 85°C and is RoHS3 compliant (unverified) with REACH unaffected (unverified) and MSL Level 1 (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 10+ | $0.84 | $0.84 |
| 25+ | $0.75 | $0.75 |
| 100+ | $0.71 | $0.71 |
| 250+ | $0.67 | $0.67 |
| 500+ | $0.64 | $0.64 |
| 1,000+ | $0.63 | $0.63 |
| 3,000+ | $0.59 | $0.59 |
| 6,000+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 10 positions.
The pitch is 0.50 mm (0.020 inches).
The connector has surface mount, right-angle mounting.
The voltage rating is 50V.
The operating temperature range is -40°C to 85°C.
