| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,820 pcs
|
1820 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

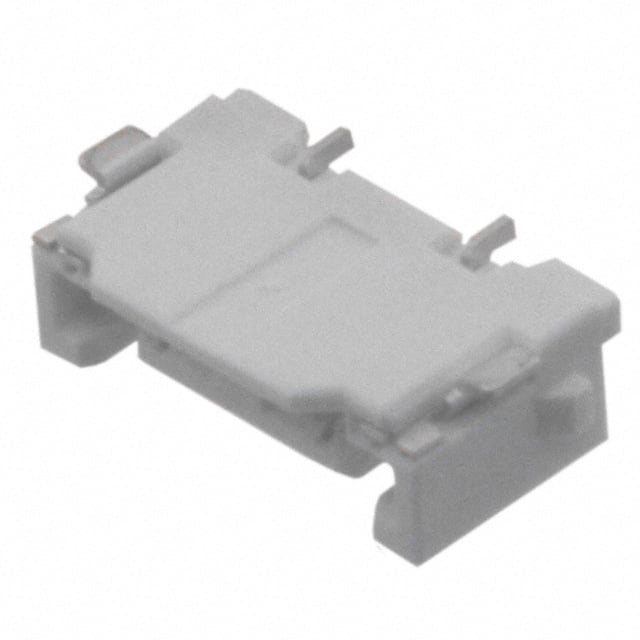

The Molex 5034710200 is a 2-position solid state lighting (SSL) connector receptacle designed for board-to-board or cable applications. It features a 3.70mm pitch and surface mount right angle termination with solder retention for reliable assembly. The housing is made of glass-filled polyamide (nylon) in white, and the contacts are phosphor bronze with a tin finish.
This connector uses a latch lock fastening type to ensure secure mating in lighting modules. It operates over a temperature range of -40°C to 80°C, making it suitable for indoor and outdoor SSL environments. The receptacle is part of Molex's SSL connector family, optimized for LED lighting systems.
With its compact 2-position design and SMT right angle mounting, the 5034710200 enables space-efficient PCB layouts. The solder retention feature helps hold the connector in place during reflow soldering. While current and voltage ratings are not specified in available data, the connector is intended for low-power signal and power connections in solid state lighting assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.49 | $0.49 |
| 10+ | $0.42 | $0.42 |
| 25+ | $0.41 | $0.41 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.32 | $0.32 |
| 1,000+ | $0.27 | $0.27 |
| 2,000+ | $0.25 | $0.25 |
| 4,000+ | $0.24 | $0.24 |
| 10,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 2 positions.
The pitch is 3.70mm (0.146 inches).
Surface mount, right angle.
Latch lock fastening.
-40°C to 80°C.
Polyamide (PA), nylon, glass filled.
Tin.
