| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
61 pcs
|
61 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Ejector Side | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Tape & Reel |

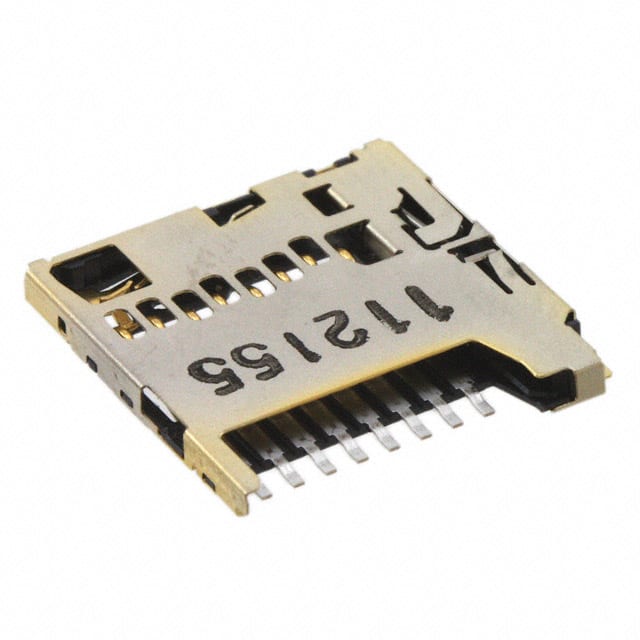

The Molex 5033980891 is a Secure Digital microSD card connector designed for reliable memory card interfacing in compact electronic devices. It integrates a push-push ejector mechanism for easy card insertion and removal, with the ejector located on the right side.
Key specifications include 9 positions (8 data contacts plus 1 card detection switch), surface mount right angle mounting, and a low profile height above board of 0.050" (1.28mm). The contacts are finished with 20.0µin (0.51µm) gold for corrosion resistance and reliable electrical performance.
This connector is suitable for applications requiring a microSD card slot with card detection capability. The push-push mechanism provides positive card retention and simple user operation. The right angle orientation allows for space-efficient board layouts in portable and embedded designs.
Secure Digital microSD card.
9 positions (8 + 1).
Surface mount, right angle.
Push in, push out (push-push).
Gold, 20.0µin (0.51µm).
0.050" (1.28mm).
Yes, it includes a switch feature.
