| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35,971 pcs
|
35971 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,812 pcs
|
2812 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

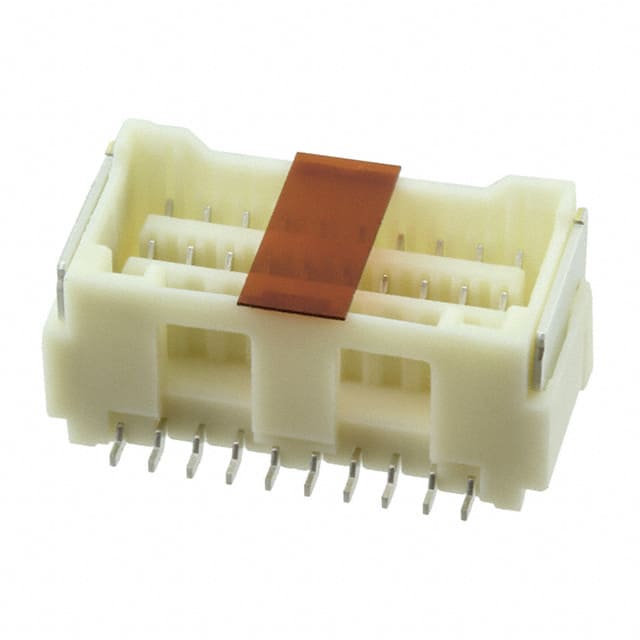

The Molex 5031542090 is a 20-position, 2-row rectangular receptacle connector designed for board-to-cable/wire applications. It features a 1.50mm (0.059") pitch, surface mount termination, and tin-plated forked contacts. The connector includes a latch holder for secure mating and is housed in a beige UL94 V-0 rated insulation. It supports an operating temperature range of -40°C to 105°C.
Designed for automated assembly, this connector supports pick and place and solder retention features. The contact finish thickness is 39.4µin (1.00µm). All 20 positions are loaded, making it suitable for dense wiring harnesses. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
This connector is ideal for compact electronic devices where reliable signal and power transmission are required. Its surface mount design allows for efficient PCB assembly, and the latch holder ensures a robust connection to the mating header.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 10+ | $2.18 | $2.18 |
| 25+ | $2.14 | $2.14 |
| 100+ | $1.86 | $1.86 |
| 250+ | $1.57 | $1.57 |
| 450+ | $1.47 | $1.47 |
| 900+ | $1.43 | $1.43 |
| 2,250+ | $1.27 | $1.27 |
| 4,950+ | $1.26 | $1.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions, all loaded, arranged in 2 rows.
The pitch is 1.50mm (0.059").
Surface mount with solder termination.
-40°C to 105°C.
Tin, with a thickness of 39.4µin (1.00µm).
Pick and place and solder retention.
Beige.
