| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,344 pcs
|
23344 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

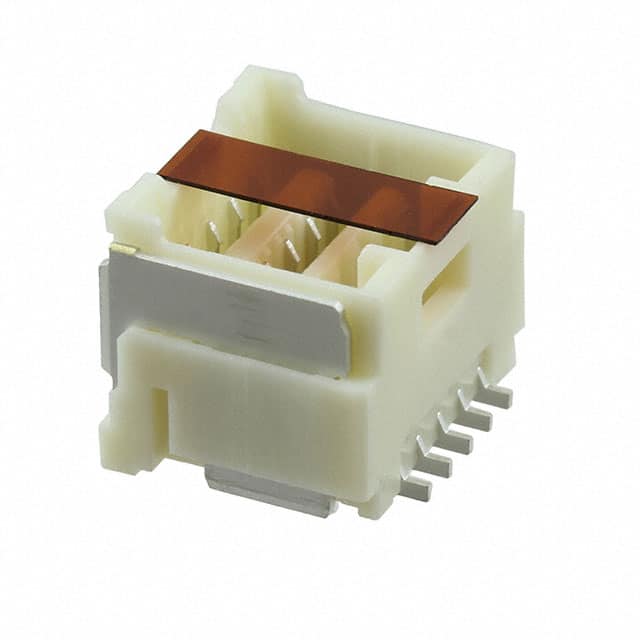

The Molex 5031541090 is a 10 position, 2 row receptacle connector designed for board to cable/wire applications. It features a 1.50mm (0.059") pitch and surface mount termination with solder contacts, making it suitable for automated assembly processes.
The connector uses forked tin contacts with a contact finish thickness of 39.4µin (1.00µm). It includes a latch holder fastening type for secure mating and has an insulation height of 8.75mm (0.344"). The beige insulator is rated UL94 V-0 for flammability.
This component supports an operating temperature range of -40°C to 105°C. It includes pick and place and solder retention features for efficient manufacturing. All 10 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.91 | $1.91 |
| 10+ | $1.66 | $1.66 |
| 100+ | $1.52 | $1.52 |
| 250+ | $1.27 | $1.27 |
| 450+ | $1.19 | $1.19 |
| 900+ | $1.12 | $1.12 |
| 2,250+ | $1.05 | $1.05 |
| 4,950+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is a receptacle.
It has 10 positions in 2 rows.
The pitch is 1.50mm (0.059").
It is a surface mount connector with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is tin with a thickness of 39.4µin (1.00µm).
It uses a latch holder fastening type.
