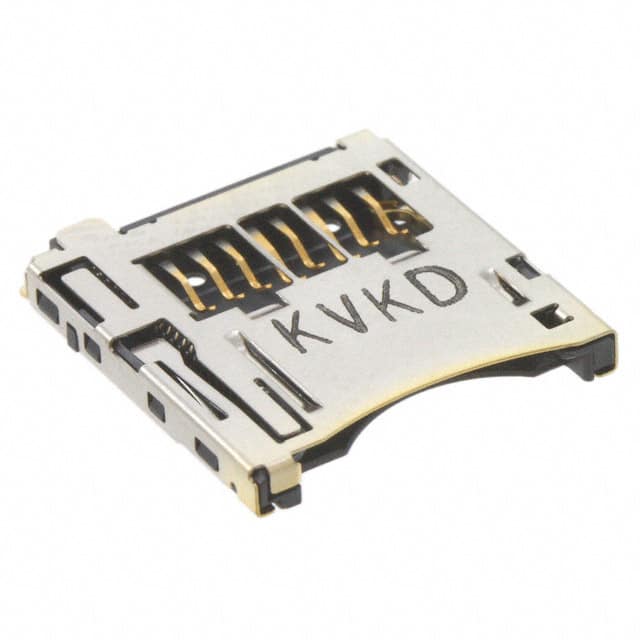

5027740891 Molex 5027740891 is a microSD card connector and ejector with 10 positions (8+2), surface mount right angle mounting, and push-push operation.
Mfr Part #:

5027740891

Available from 2 distributors
Mfr Name: Molex
Molex
Molex 5027740891 is a microSD card connector and ejector with 10 positions (8+2), surface mount right angle mounting, and push-push operation.
✓ Total Stock: 919 pcs

5027740891 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
672 pcs
On Request
672 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
247 pcs
On Request
247 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5027740891 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Insertion, Removal Method
Mounting Feature
Mounting Type
Number of Positions
Tape & Reel
View Similar Products (0)

5027740891 Description

Short technical summary and product information.

This is a microSD card connector by Molex, part number 5027740891. It is a surface mount, right angle connector with a reverse bottom mounting feature. It features a push-in push-out insertion/removal method.



The connector has 10 positions, with 8 data lines and 2 additional positions. It includes a card detection switch. The contact finish is gold with a thickness of 0.51 µm.



The connector has a height above board of 1.80 mm, suitable for compact designs. It is designed for microSD cards.

5027740891 Quick Information

Product Type: microSD Card Connector
Canonical Name: Molex 5027740891 microSD Card Connector, Surface Mount, Right Angle, Push-Push
Subcategory: Push-Push microSD Connector

5027740891 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5027740891 Features

  • 10 positions with 8 data and 2 additional.
  • Surface mount right angle for compact design.
  • Push-push insertion and removal mechanism.
  • Gold contact finish for reliable connections.
  • Includes card detection switch.

5027740891 Applications

  • Ideal for portable consumer electronics.
  • Use in microSD card interface modules.
  • Suitable for IoT devices requiring external storage.
  • Can be used in embedded systems for data logging.

5027740891 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 5027740891 connector have?

10 positions (8 + 2).

What is the mounting type of this connector?

Surface Mount, Right Angle with Reverse - Bottom mounting feature.

What type of card does this connector accept?

Secure Digital - microSD™.

What is the height above board?

1.80 mm.

What is the contact finish?

Gold with 0.51 µm thickness.

How is the card inserted and removed?

Push In, Push Out (push-push).

Does this connector have a card detection switch?

Yes, it includes a switch.
