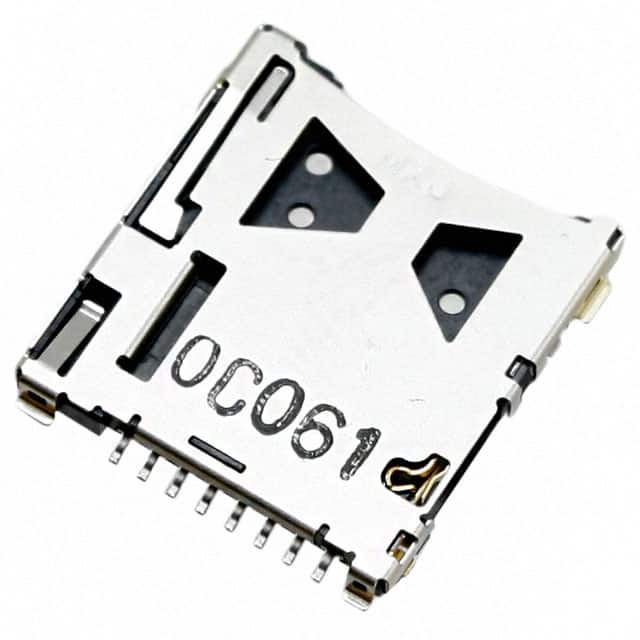

5027020891 Molex 5027020891 is a microSD card connector with push-push insertion and removal. It features 10 positions, right angle surface mount design, and a built-in card detection switch.
Mfr Part #:

5027020891

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 5027020891 is a microSD card connector with push-push insertion and removal. It features 10 positions, right angle surface mount design, and a built-in card detection switch.
✓ Total Stock: 6,438 pcs
$ Price Range: $4.76

5027020891 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
6,438 pcs
On Request
6438 pcs On Request 1 On Request On Request 1829+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5027020891 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Features
Height Above Board
Insertion, Removal Method
Mounting Feature
Mounting Type
Number of Positions
Tape & Reel
View Similar Products (0)

5027020891 Description

Short technical summary and product information.

The Molex 5027020891 is a microSD (Secure Digital) memory card connector designed for surface mount assembly. It features a push-push mechanism for card insertion and ejection, and a right-angle orientation to save board space. The connector has 10 positions (8 data + 2 dedicated for card detection) and includes an integrated switch for card presence detection. With a height above board of only 1.52 mm, it is suitable for compact portable devices. The connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in applications requiring removable storage, such as smartphones, tablets, cameras, and embedded systems. The tape and reel packaging (DigiKey part WM19092TR-ND) facilitates automated assembly.

5027020891 Quick Information

Product Type: microSD Card Connector
Canonical Name: Molex 5027020891 microSD Card Connector, Push-Push, Right Angle, SMT, 10 Positions
Subcategory: Connector and Ejector

5027020891 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

5027020891 Estimated Pricing

Qty Low High
6,000+ $4.76 $4.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

5027020891 Features

  • Push-push card insertion and ejection mechanism.
  • Right angle surface mount for space saving.
  • 10 positions including card detection switch.
  • Low profile height of 1.52 mm.
  • RoHS3 compliant with MSL 1 rating.

5027020891 Applications

  • Used in smartphones and tablets for storage.
  • Ideal for portable consumer electronics.
  • Suitable for embedded systems with microSD.
  • Common in cameras and GPS devices.

5027020891 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 5027020891 have?

10 positions (8 + 2).

What is the mounting type of this connector?

Surface mount, right angle.

What type of memory card does this connector support?

Secure Digital - microSD.

How is the card inserted and removed?

Push in, push out (push-push).

What is the height above board?

1.52 mm.

Does the connector have a card detection switch?

Yes, it includes a switch.

Is the Molex 5027020891 RoHS compliant?

RoHS3 Compliant.
