| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
706 pcs
|
706 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
691 pcs
|
691 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

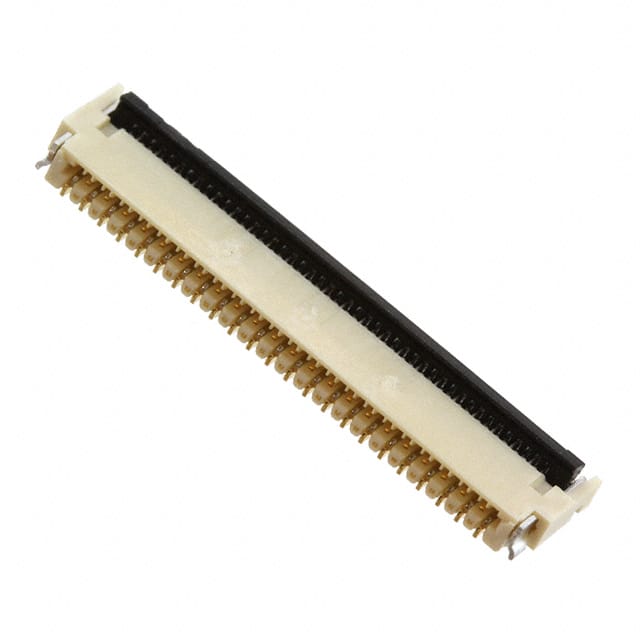

The Molex 5025984593 is a 45-position FPC connector with a 0.3mm pitch, designed for right angle surface mount applications. It features gold-plated phosphor bronze contacts for reliable low-resistance connections. The housing is made of liquid crystal polymer (LCP) with glass fill, and the actuator is polyamide (PA) nylon with glass fill. The connector includes a flip lock and backlock mechanism for secure cable retention, along with solder retention for improved mechanical stability.
Rated for 50V DC operation, it operates over a temperature range of -40°C to 105°C. The flammability rating is UL94 V-0 and UL94 HB. The height above board is 1.14mm, and it accommodates FPC or FPC cables with a thickness of 0.20mm. The cable end type is tapered. This connector is suitable for high-density interconnections in compact electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.90 | $2.90 |
| 10+ | $2.54 | $2.54 |
| 25+ | $2.26 | $2.26 |
| 100+ | $2.16 | $2.16 |
| 250+ | $2.02 | $2.02 |
| 500+ | $1.93 | $1.93 |
| 1,000+ | $1.85 | $1.85 |
| 3,000+ | $1.65 | $1.65 |
| 6,000+ | $1.62 | $1.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
45 positions.
0.30mm.
50V.
Surface mount, right angle.
-40°C to 105°C.
Phosphor bronze contacts with gold finish.
Flip lock, backlock.
