| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

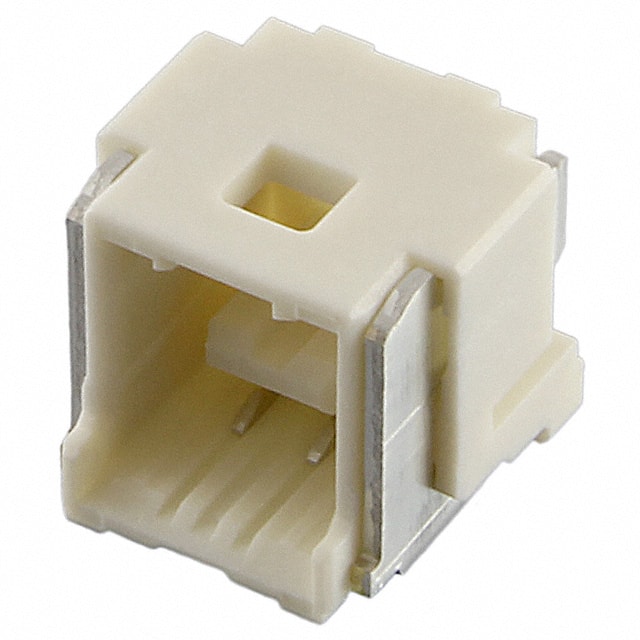

The Molex 5025840270 is a 2-position receptacle connector designed for board-to-cable/wire applications. It features a 1.50mm pitch and single-row configuration with forked contacts. The connector is surface mount (SMT) with solder termination, and includes a latch holder for secure mating. The contacts are finished with tin (39.4µin thickness) and the insulation is beige with a height of 7.25mm. The operating temperature range is -40°C to 105°C, and the material is rated UL94 V-0 for flammability. Additional features include pick and place capability and solder retention, making it suitable for automated assembly. The connector is RoHS3 compliant and REACH unaffected (unverified). It is packaged for surface mount assembly, typically supplied in tape and reel (standard package quantity unavailable).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.02 | $1.02 |
| 10+ | $0.86 | $0.86 |
| 100+ | $0.73 | $0.73 |
| 500+ | $0.60 | $0.60 |
| 900+ | $0.57 | $0.57 |
| 1,800+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
1.50mm (0.059 inches).
Surface mount (SMT).
-40°C to 105°C.
Tin with 39.4µin (1.00µm) thickness.
Latch holder.
RoHS3 compliant (unverified).
