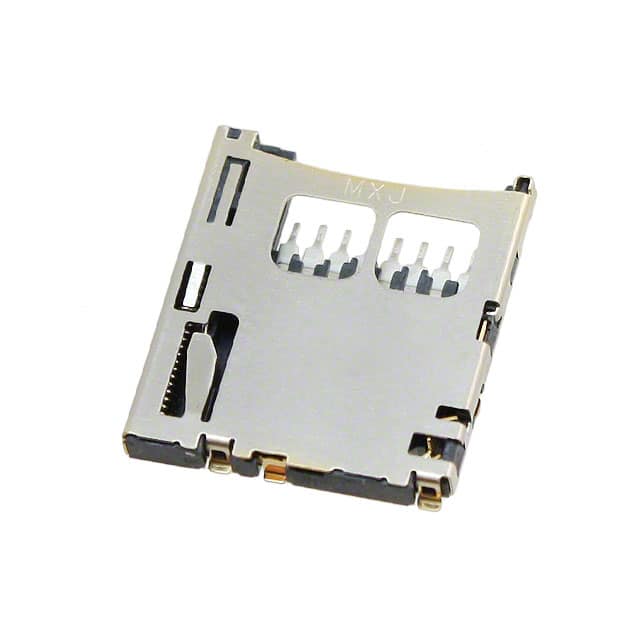

5025700893 Molex 5025700893 is a microSD card connector with push-push ejection, right angle surface mount, 10 positions (8+2), and gold contact finish.
Mfr Part #:

5025700893

Available from 7 distributors
Mfr Name: Molex
Molex
Molex 5025700893 is a microSD card connector with push-push ejection, right angle surface mount, 10 positions (8+2), and gold contact finish.
✓ Total Stock: 454 pcs
$ Price Range: $2.29 - $4.06

5025700893 Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5025700893 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Insertion, Removal Method
Mounting Feature
Mounting Type
Number of Positions
Tape & Reel
View Similar Products (0)

5025700893 Description

Short technical summary and product information.

The Molex 5025700893 is a microSD (Secure Digital) card connector designed for push-push (push-in, push-out) card ejection. It features a right-angle surface mount configuration with a height of 0.071" (1.80mm) above the board. The connector has 10 positions (8 data + 2 dedicated) and includes a card detect switch for status monitoring. Gold contact finish with 20µin thickness ensures reliable electrical connections. This connector is suitable for portable electronic devices requiring compact memory card interfaces.

5025700893 Quick Information

Product Type: microSD Card Connector
Canonical Name: Molex 5025700893 microSD Card Connector, Push-Push, Right Angle, Surface Mount
Subcategory: microSD Card Connector

5025700893 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5025700893 Estimated Pricing

Qty Low High
1+ $4.06 $4.06
10+ $3.46 $3.46
25+ $3.09 $3.09
100+ $2.94 $2.94
250+ $2.75 $2.75
500+ $2.68 $2.68
1,300+ $2.52 $2.52
2,600+ $2.36 $2.36
3,900+ $2.29 $2.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

5025700893 Features

  • Push-push card ejection mechanism.
  • Right angle surface mount design.
  • 10 positions with card detect switch.
  • Gold contact finish for reliability.
  • Low profile height of 1.80mm.

5025700893 Applications

  • Used in portable consumer electronics.
  • Ideal for microSD memory card interfaces.
  • Suitable for compact embedded systems.
  • Integrates card detection for system status.

5025700893 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the card type supported by this connector?

Secure Digital - microSD.

What is the connector type?

Connector and Ejector.

How many positions does the connector have?

10 positions (8 + 2).

What is the mounting type?

Surface Mount, Right Angle.

What is the insertion and removal method?

Push In, Push Out (push-push).

What is the height above board?

0.071" (1.80mm).

Does the connector include a card detect switch?

Yes, it includes a switch feature.
