5024430870

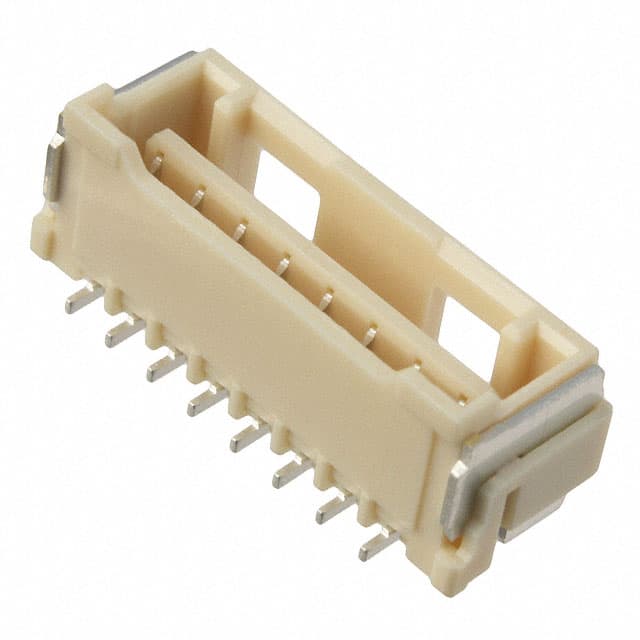

The Molex 5024430870 is an 8-position, single-row receptacle connector with a 2.00mm pitch. It is designed for board to cable/wire applications and features surface mount termination with solder retention. The housing is made of material with UL94 V-0 flammability rating and natural color. The insulation height is 7.44mm. Operating temperature range is -40°C to 105°C. It is rated for 3A per contact and 250V. Contact finish is tin with 1.00µm thickness. The connector uses a latch holder fastening type. Packaging is tape and reel for pick-and-place assembly. This connector is part of Molex's product line for reliable interconnections. The fork contact type ensures secure connections. The solder retention feature helps maintain alignment during reflow soldering. The 2.00mm pitch allows for compact designs while maintaining adequate spacing. The connector is suitable for consumer electronics, industrial controls, and other applications requiring a reliable board-to-wire interface. The natural insulation color aids in visual inspection. The UL94 V-0 rating ensures fire safety. The broad operating temperature range allows use in various environments. The tin contact finish provides good solderability and corrosion resistance.
