| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

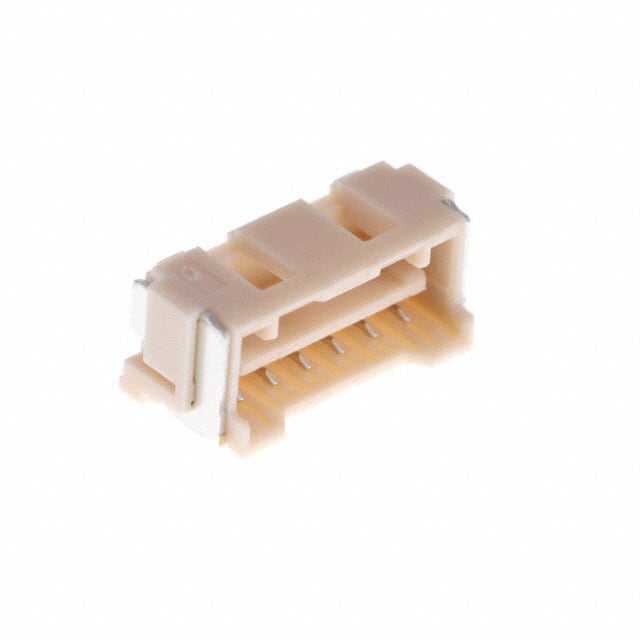

The Molex 5024430670 is a 6 position receptacle connector designed for board-to-cable/wire applications. It features a single row of forked contacts with a 2.00mm pitch, enabling compact and reliable interconnections. The connector is surface mount with solder termination and includes solder retention for secure attachment during assembly.
The housing is made of natural colored insulation with a height of 7.44mm and a UL94 V-0 flammability rating. The contacts are finished with tin (39.4µin thickness) and the fastening type is a latch holder, ensuring a secure mating with compatible headers. The operating temperature range is -40°C to 105°C, suitable for a variety of environments.
This connector is supplied in tape and reel packaging, making it suitable for automated pick-and-place assembly. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited floor life). The part is commonly used in consumer electronics, industrial controls, and other applications requiring a reliable, space-saving wire-to-board connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.67 | $0.67 |
| 10+ | $0.57 | $0.57 |
| 25+ | $0.51 | $0.51 |
| 100+ | $0.49 | $0.49 |
| 250+ | $0.40 | $0.40 |
| 650+ | $0.37 | $0.37 |
| 1,950+ | $0.36 | $0.36 |
| 4,550+ | $0.35 | $0.35 |
| 9,750+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions in a single row.
The pitch is 2.00mm (0.079 inches).
Surface mount with solder termination.
Tin with a thickness of 39.4µin (1.00µm).
-40°C to 105°C.
Latch holder for secure mating.
UL94 V-0.
