| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

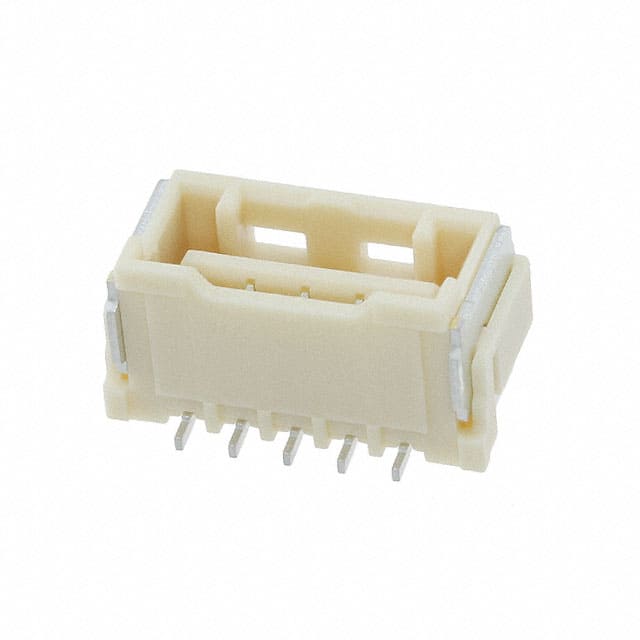

This Molex 5024430570 is a 5-position, single-row surface mount receptacle designed for board-to-cable/wire connections. It features a 2.00mm (0.079") pitch and all positions loaded. The forked contacts are tin-plated with a thickness of 39.4µin (1.00µm), providing reliable electrical conductivity. A latch holder fastening type ensures secure mating with the corresponding connector, while solder retention aids in board assembly reliability.
The insulator is natural in color, made from UL94 V-0 rated material, and has a height of 7.44mm (0.293"). The operating temperature range is -40°C to 105°C, suitable for a variety of environments. Termination is via solder for surface mount applications. This connector is commonly used in applications requiring a compact, low-profile interconnect solution for wire-to-board signal or power connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.61 | $0.61 |
| 10+ | $0.52 | $0.52 |
| 25+ | $0.46 | $0.46 |
| 100+ | $0.44 | $0.44 |
| 250+ | $0.39 | $0.39 |
| 650+ | $0.36 | $0.36 |
| 1,950+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions, all loaded.
2.00mm (0.079 inches).
Surface mount with solder termination.
-40°C to 105°C.
Tin with thickness of 39.4µin (1.00µm).
Latch holder.
