| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,500 pcs
|
11500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

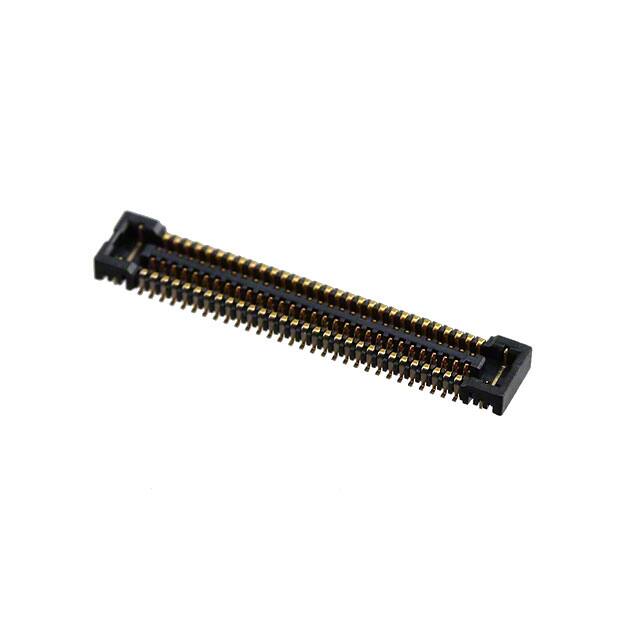

The Molex 5024266010 is a 60 position receptacle connector featuring a surface mount design with 2 rows and a 0.40mm pitch. It has gold contact finish with a thickness of 4.00µin, ensuring reliable electrical performance and corrosion resistance. The connector has a mated stacking height of 1.00mm and includes solder retention features for secure attachment during reflow soldering.
This connector is part of the Arrays, Edge Type, Mezzanine (Board to Board) category, making it suitable for stacking or mezzanine applications where a low-profile connection is required. The center strip contact configuration is designed for high-density interconnects.
With a height above board of 1.00mm, this connector is ideal for space-constrained designs. The gold contacts provide a durable and low-resistance interface. The connector is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.71 | $1.71 |
| 10+ | $1.56 | $1.56 |
| 25+ | $1.52 | $1.52 |
| 100+ | $1.45 | $1.45 |
| 250+ | $1.36 | $1.36 |
| 500+ | $1.29 | $1.29 |
| 1,000+ | $1.24 | $1.24 |
| 3,000+ | $1.05 | $1.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 60 positions arranged in 2 rows.
The pitch is 0.40mm (0.016 inches).
It is a surface mount (SMD) connector.
