| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
103 pcs
|
103 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

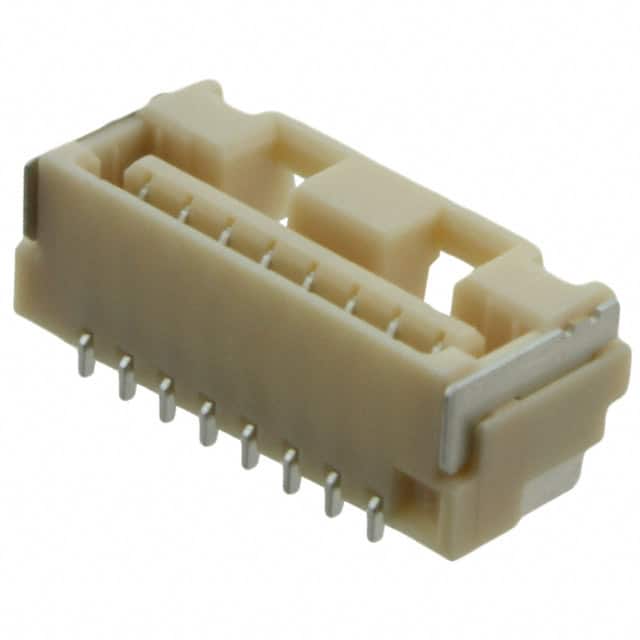

The Molex 5023860870 is a 8-position receptacle connector designed for board-to-cable/wire applications. It features a 1.25mm (0.049") pitch, single row configuration, and surface mount right angle mounting for compact PCB designs. The connector uses forked contact type with tin finish, and the contact finish thickness is 39.4µin (1.00µm). It includes a solder retention feature to secure the connector during assembly. The fastening type is a latch holder for reliable mating. The insulation is natural color with a height of 5.45mm (0.215") and is made of UL94 V-0 rated material. The operating temperature range is -40°C to 105°C. Electrical ratings are 1A current and 50V voltage. Termination is through solder. The connector is suitable for use in various electronic devices requiring a compact, low-power interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.83 | $0.83 |
| 10+ | $0.71 | $0.71 |
| 100+ | $0.60 | $0.60 |
| 500+ | $0.54 | $0.54 |
| 1,200+ | $0.49 | $0.49 |
| 2,400+ | $0.48 | $0.48 |
| 4,800+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
1.25mm (0.049 inches).
1A.
50V.
Surface mount, right angle.
-40°C to 105°C.
Tin with 39.4µin (1.00µm) thickness.
