| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,150 pcs
|
2150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

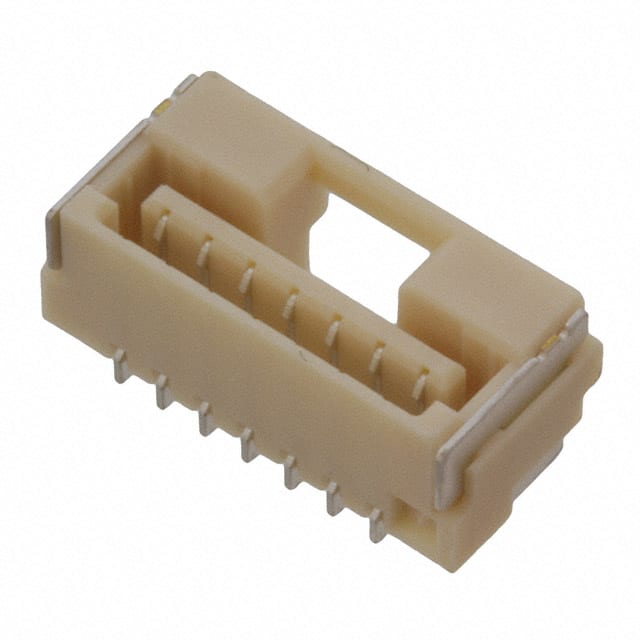

The Molex 5023860770 is a 7-position, single-row, 1.25mm pitch receptacle connector designed for board-to-cable/wire applications. It features forked contacts with a tin finish (39.4µin thickness) and is rated for 1A current and 50V voltage. The connector uses a latch holder fastening type and includes solder retention for reliable PCB attachment. The housing is natural colored with an insulation height of 5.45mm and is made of UL94 V-0 rated material. Mounting is surface mount, right angle with solder termination. The operating temperature range is -40°C to 105°C. This connector is suitable for compact designs requiring a secure and durable connection. Cross-references include DigiKey part numbers WM4950TR-ND, WM4950CT-ND, and WM4950DKR-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.59 | $0.59 |
| 250+ | $0.59 | $0.59 |
| 500+ | $0.54 | $0.54 |
| 1,200+ | $0.46 | $0.46 |
| 2,400+ | $0.43 | $0.43 |
| 4,800+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions.
1.25mm.
1A.
50V.
Surface mount, right angle.
-40°C to 105°C.
Tin with 39.4µin thickness.
