| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

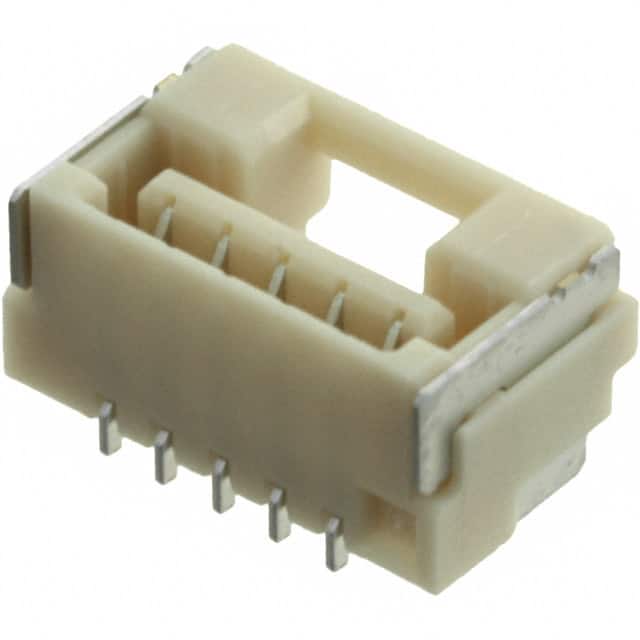

The Molex 5023860570 is a 5-position receptacle connector designed for board-to-cable/wire applications. It features a 1.25mm pitch and tin-plated forked contacts, ensuring reliable electrical connections. The connector is rated for 1A current and 50V voltage, making it suitable for low-power signal and power applications. Its operating temperature range is -40°C to 105°C.
The connector uses a surface mount, right-angle mounting type, which allows for compact board designs. It includes a latch holder fastening type for secure mating and solder retention features for reliable soldering. The insulation is natural-colored with a height of 5.45mm, and the material has a UL94 V-0 flammability rating.
This connector is commonly used in consumer electronics, industrial controls, and other applications requiring a compact, reliable interconnection. The 1.25mm pitch saves space on the PCB while still providing adequate current-carrying capacity. The tin contact finish offers good conductivity and corrosion resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.79 | $0.79 |
| 10+ | $0.68 | $0.68 |
| 25+ | $0.66 | $0.66 |
| 100+ | $0.58 | $0.58 |
| 250+ | $0.52 | $0.52 |
| 1,200+ | $0.46 | $0.46 |
| 2,400+ | $0.41 | $0.41 |
| 4,800+ | $0.39 | $0.39 |
| 9,600+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
1.25mm.
1A.
50V.
Surface Mount, Right Angle.
-40°C to 105°C.
Latch Holder.
