| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

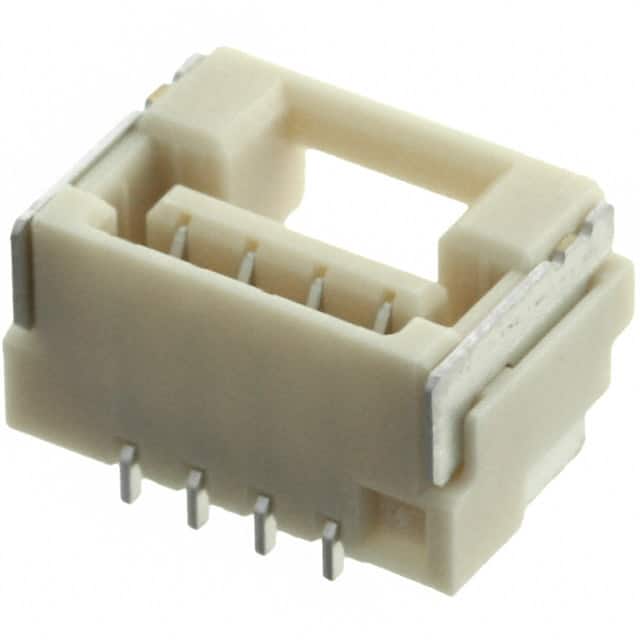

This is a Molex 5023860470 rectangular connector, a receptacle with 4 positions, 1 row, and 1.25mm pitch. It is designed for board-to-cable/wire applications. The connector has a surface mount, right angle mounting type with solder termination. It features a latch holder fastening type and solder retention. Electrical ratings: 1A current, 50V voltage. Operating temperature -40°C to 105°C. Insulation is natural color, height 5.45mm. Contact finish is tin with 39.4µin thickness. Material flammability rating UL94 V-0. The connector is RoHS3 compliant (unverified) and REACH unaffected (unverified). MSL level 1 (unverified). Note: compliance data is low confidence. The connector is suitable for compact wire-to-board connections in various electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.67 | $0.67 |
| 10+ | $0.57 | $0.57 |
| 100+ | $0.49 | $0.49 |
| 250+ | $0.43 | $0.43 |
| 1,200+ | $0.40 | $0.40 |
| 2,400+ | $0.38 | $0.38 |
| 4,800+ | $0.36 | $0.36 |
| 9,600+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 4 positions.
The pitch is 1.25mm.
The current rating is 1A.
The voltage rating is 50V.
The mounting type is Surface Mount, Right Angle.
The operating temperature range is -40°C to 105°C.
The contact finish is Tin with a thickness of 39.4µin.
