| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

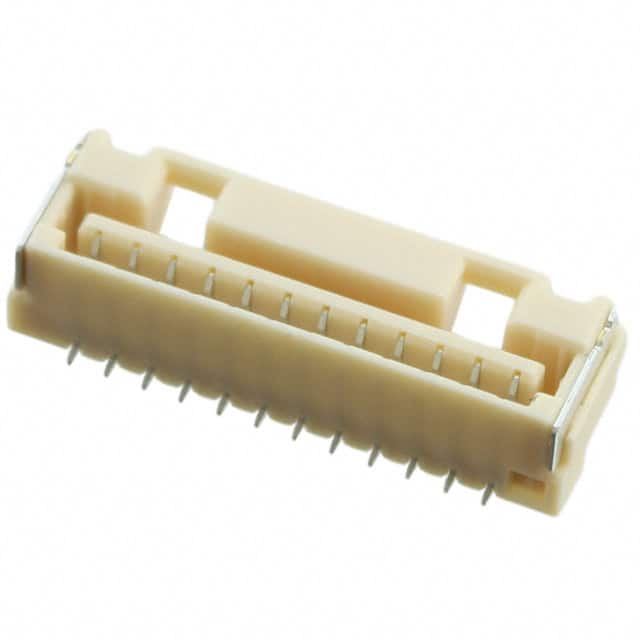

The Molex 5023821270 is a 12 position, single row, surface mount receptacle connector designed for board-to-cable/wire applications. It features forked contacts with a tin finish (1.00µm thickness) and a natural colored insulator made from UL94 V-0 rated material.
This connector has a 1.25mm pitch and includes a latch holder fastening type for secure mating. It is rated for 1A current and 50V voltage, with an operating temperature range of -40°C to 105°C. Termination is via solder, and the part includes a solder retention feature for reliable board mounting.
Packaging is surface mount tape and reel suitable for automated assembly. This connector is designed for use in compact electronic devices requiring a reliable, low-profile interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
| 10+ | $1.04 | $1.04 |
| 25+ | $1.00 | $1.00 |
| 100+ | $0.93 | $0.93 |
| 250+ | $0.85 | $0.85 |
| 500+ | $0.76 | $0.76 |
| 1,400+ | $0.65 | $0.65 |
| 2,800+ | $0.63 | $0.63 |
| 4,200+ | $0.59 | $0.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 12 positions in a single row.
The pitch is 1.25mm.
It is rated for 1A.
It is rated for 50V.
It is surface mount.
