| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,190 pcs
|
1190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
87 pcs
|
87 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

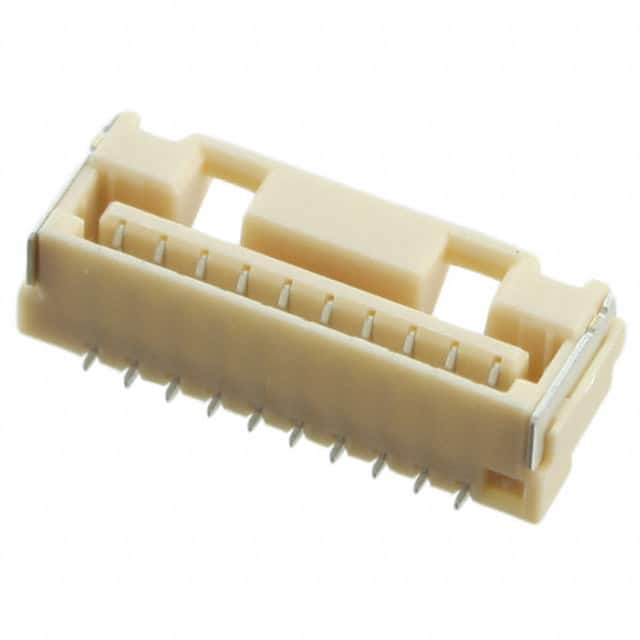

The Molex 5023821070 is a 10 position, single row rectangular connector receptacle designed for board to cable/wire connections. It features a 1.25mm (0.049") pitch and uses forked contacts with a tin finish (39.4µin thickness) for reliable conductivity. The connector is rated for 1A current and 50V, with an operating temperature range of -40°C to 105°C. The housing is made of a UL94 V-0 rated material and has a natural insulation color.
The component is surface mount (SMD) with solder termination and includes a latch holder for secure mating. Solder retention features are included for improved board-level reliability. The connector is designed for use in applications requiring a compact, low-profile board to wire interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.06 | $1.06 |
| 10+ | $0.90 | $0.90 |
| 100+ | $0.77 | $0.77 |
| 500+ | $0.68 | $0.68 |
| 1,400+ | $0.64 | $0.64 |
| 2,800+ | $0.60 | $0.60 |
| 4,200+ | $0.59 | $0.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The part number is 5023821070 and it is manufactured by Molex.
This receptacle has 10 positions, all positions loaded, in a single row.
The pitch is 1.25mm (0.049 inches).
The current rating is 1A and the voltage rating is 50V.
The mounting type is Surface Mount (SMD) and the termination is Solder.
The operating temperature range is -40°C to 105°C.
The contact finish is Tin with a thickness of 39.4µin (1.00µm).
