| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,983 pcs
|
26983 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

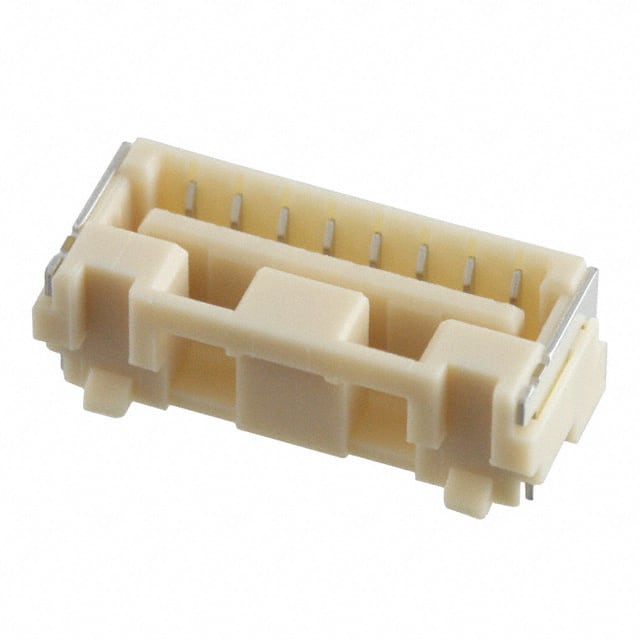

The Molex 5023820870 is a surface mount receptacle connector designed for board-to-cable/wire applications. It features 8 positions in a single row with a 1.25mm pitch, making it suitable for compact electronic assemblies. The connector uses forked tin contacts with a thickness of 1µm and is rated for 1A and 50V operation. It includes a latch holder for secure fastening and solder retention for reliable mounting. The insulation is natural color with a height of 4.40mm and is made of UL94 V-0 rated material. Operating temperature range is -40°C to 105°C. This component is RoHS compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.84 | $0.84 |
| 10+ | $0.71 | $0.71 |
| 100+ | $0.61 | $0.61 |
| 500+ | $0.54 | $0.54 |
| 1,400+ | $0.49 | $0.49 |
| 2,800+ | $0.46 | $0.46 |
| 4,200+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8 positions loaded in a single row.
The pitch is 1.25mm (0.049 inches).
The current rating is 1A.
The voltage rating is 50V.
The connector is surface mount (SMD) with solder termination.
