| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,160 pcs
|
1160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Termination | |
| Voltage Rating |

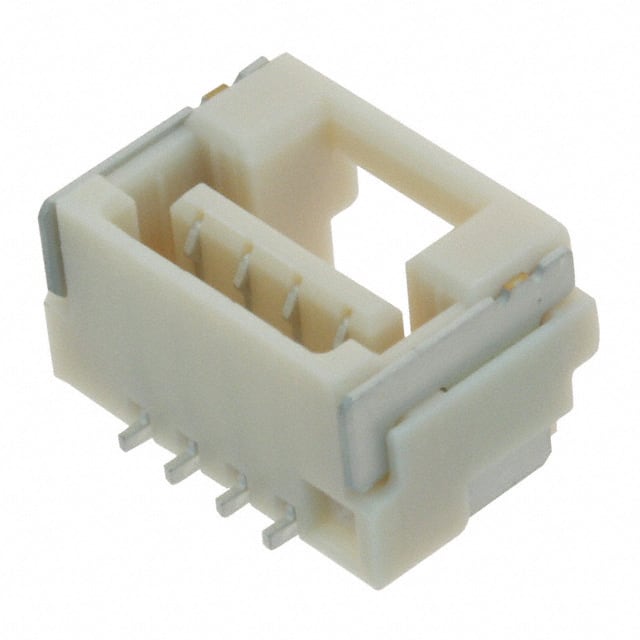

The Molex 5023820470 is a 4 position, single row, 1.25mm pitch receptacle designed for board-to-cable/wire applications. It features a surface mount termination with solder retention for reliable mechanical attachment during assembly.
The connector uses forked tin contacts with a 1.00µm tin finish, rated for 1A current and 50V. The natural insulation is rated UL94 V-0 for flammability, and the operating temperature range is -40°C to 105°C. A latch holder fastening type ensures secure mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.63 | $0.63 |
| 10+ | $0.54 | $0.54 |
| 100+ | $0.46 | $0.46 |
| 500+ | $0.41 | $0.41 |
| 1,400+ | $0.41 | $0.41 |
| 2,800+ | $0.39 | $0.39 |
| 4,200+ | $0.38 | $0.38 |
| 7,000+ | $0.37 | $0.37 |
| 9,800+ | $0.36 | $0.36 |
| 14,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions, all loaded, in a single row.
The pitch is 1.25mm.
The current rating is 1A.
The voltage rating is 50V.
It is a surface mount connector with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is tin with a thickness of 1.00µm.
