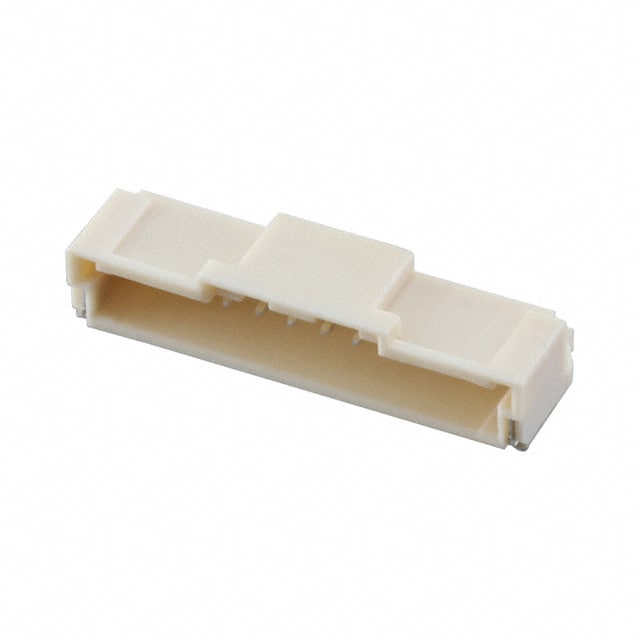

5023521200 Molex 5023521200 is a 12-position, 1-row, 2.00mm pitch surface mount right angle header with male pins. It features a shrouded 4-wall design with latch lock and solder retention.
Mfr Part #:

5023521200

Available from 2 distributors
Mfr Name: Molex
Molex
Molex 5023521200 is a 12-position, 1-row, 2.00mm pitch surface mount right angle header with male pins. It features a shrouded 4-wall design with latch lock and solder retention.
✓ Total Stock: 29,200 pcs
$ Price Range: $1.02 - $1.84

5023521200 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
25,000 pcs
On Request
25000 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
4,200 pcs
On Request
4200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5023521200 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

5023521200 Description

Short technical summary and product information.

The Molex 5023521200 is a 12-position, single-row header designed for board-to-cable/wire applications. It features a 2.00mm pitch and a surface mount, right angle orientation. The connector is shrouded with a 4-wall design and includes a latch lock for secure mating. Contacts are made of copper alloy with tin plating, and the insulator is natural nylon with a UL94 V-0 flammability rating. The header includes solder retention features for reliable PCB attachment. This connector is suitable for applications requiring a compact, low-profile interconnect solution. The header has a contact length of 3.45mm and an insulation height of 6.40mm. All 12 positions are loaded. The termination style is solder, and the contact shape is square.

5023521200 Quick Information

Product Type: Header, Male Pins
Series: DuraClik
Canonical Name: Molex 5023521200 - 12 Position 2.00mm Pitch Surface Mount Right Angle Header, Male Pins, Shrouded
Subcategory: Shrouded Header

5023521200 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5023521200 Estimated Pricing

Qty Low High
1+ $1.84 $1.84
10+ $1.61 $1.61
25+ $1.57 $1.57
100+ $1.37 $1.37
250+ $1.36 $1.36
500+ $1.21 $1.21
1,000+ $1.12 $1.12
2,100+ $1.05 $1.05
4,200+ $1.02 $1.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

5023521200 Features

  • 12 positions in single row configuration.
  • 2.00mm pitch for compact designs.
  • Surface mount right angle orientation.
  • Shrouded 4-wall design with latch lock.
  • Solder retention for reliable PCB attachment.

5023521200 Applications

  • Used in wire-to-board interconnects.
  • Suitable for general purpose signal connections.
  • Ideal for space-constrained PCB layouts.
  • Provides secure connection in moderate vibration environments.

5023521200 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 5023521200 have?

12 positions.

What is the pitch of this header?

2.00mm.

What is the mounting type?

Surface mount, right angle.

How many rows does it have?

1 row.

What is the contact finish?

Tin.

Is the header shrouded?

Yes, shrouded with 4 walls.

What is the flammability rating of the insulator?

UL94 V-0.
