| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,084 pcs
|
23084 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

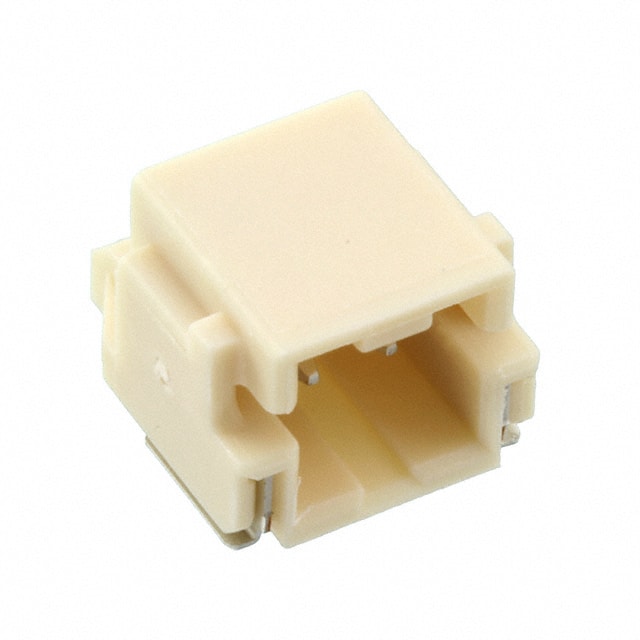

Molex 5023520200 is a 2-position, single-row header with male pins, designed for board-to-cable/wire interconnections. It features a 2.00mm pitch, surface mount right angle termination, and solder retention for secure PCB attachment. The connector has a shrouded 4-wall design with latch lock fastening, providing reliable mating and protection. Insulation is natural polyamide (nylon) with a flammability rating of UL94 V-0. The contacts are copper alloy with tin finish. This header is suitable for applications requiring a compact, low-profile connection, with an operating temperature range of -40°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.42 | $1.42 |
| 10+ | $1.21 | $1.21 |
| 100+ | $1.03 | $1.03 |
| 700+ | $0.92 | $0.92 |
| 1,400+ | $0.86 | $0.86 |
| 2,100+ | $0.83 | $0.83 |
| 4,900+ | $0.79 | $0.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
2.00mm.
Surface mount, right angle.
Latch lock.
Yes, it is shrouded with a 4-wall design.
-40°C to 105°C.
UL94 V-0.
