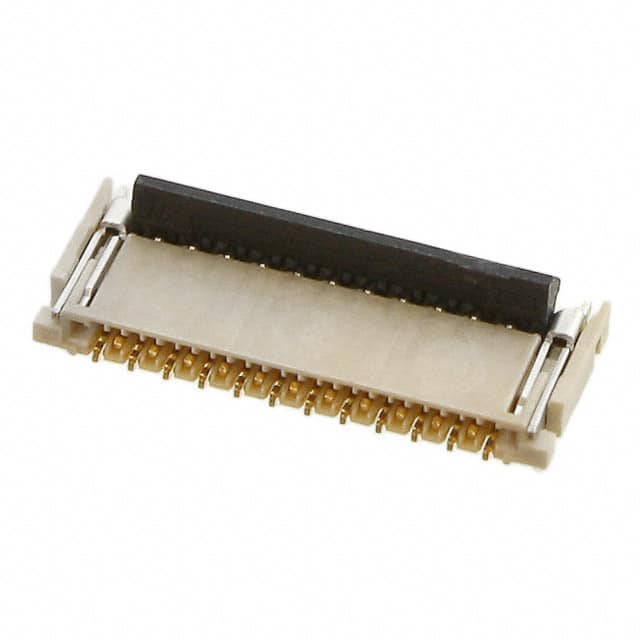

The Molex 5022502391 is a 23-position FPC (Flexible Printed Circuit) connector with a 0.30mm pitch. It is designed for surface mount, right angle mounting, making it suitable for compact PCB layouts where space is limited. The connector features gold-plated copper alloy contacts for reliable connectivity and uses a liquid crystal polymer (LCP) glass-filled housing with a polyphenylene sulfide (PPS) glass-filled actuator.
The locking mechanism employs a flip lock and backlock design, ensuring secure cable retention. The connector accepts notched or tabbed FPC cables up to 0.20mm thickness. It has a voltage rating of 50V and an operating temperature range of -25°C to 85°C. The housing material meets UL94 V-0 flammability rating.
This connector is part of Molex's line of fine-pitch FPC connectors, ideal for applications requiring high-density interconnections in consumer electronics, medical devices, and industrial equipment. The surface mount right angle configuration allows for low-profile connections, with a height above board of 0.88mm.
23 positions.
0.30mm (0.012 inches).
50V.
Surface mount, right angle.
-25°C to 85°C.
Flip lock and backlock.
Gold.
