Mfr Part #:

5022501791

Name: 5022501791
Brand: Molex
SKU: 5022501791

Mfr Name: Molex

Description:

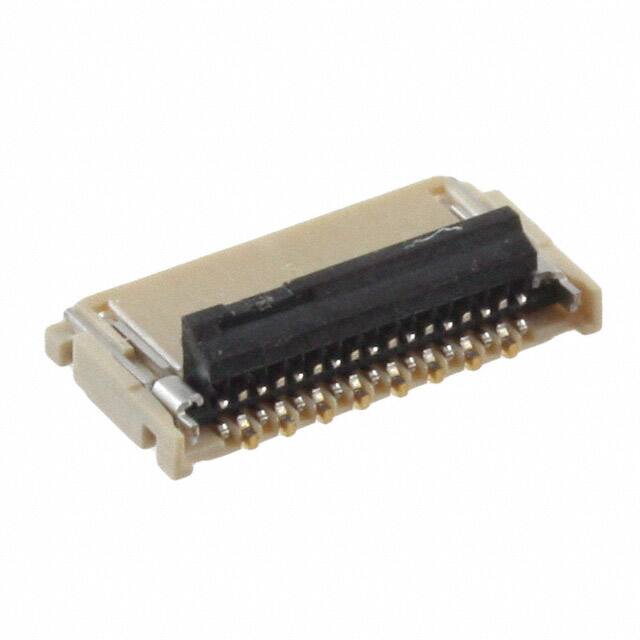

CONN FPC 17POS 0.3MM R/A

Stock on Request

5022501791 Description

Short technical summary and product information.

CONN FPC 17POS 0.3MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

502250-1791

Molex

CONN FPC 17POS 0.30MM R/A

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Molex
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Notched or Tabbed
Connector	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
FFC, FCB Thickness	0.20mm
Flat Flex Type	FPC
Height Above Board	0.035" (0.88mm)
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	17
Operating Temperature	-25°C ~ 85°C
Pitch	0.012" (0.30mm)
Termination	Solder
Voltage Rating	50V
