5022442430 This Molex FFC connector features 24 positions with 0.5mm pitch, bottom contacts, surface mount right angle design, and gold contact finish.
Mfr Part #:

5022442430

Available from 1 distributors
Mfr Name: Molex
Molex
This Molex FFC connector features 24 positions with 0.5mm pitch, bottom contacts, surface mount right angle design, and gold contact finish.
✓ Total Stock: 40,000 pcs
$ Price Range: $0.88 - $1.60

5022442430 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
40,000 pcs
On Request
40000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5022442430 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
Contact Type
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Operating Temperature Range
Pitch
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

5022442430 Description

Short technical summary and product information.

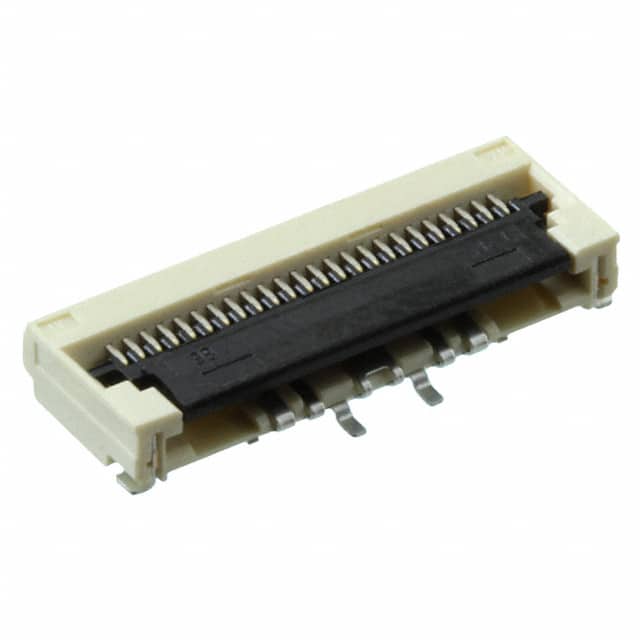

This Molex 5022442430 is a 24-position FFC connector designed for flat flexible cable applications. It features bottom contacts with a 0.5mm pitch and a surface mount, right angle mounting style. The connector employs zero insertion force (ZIF) technology with a flip lock actuator for easy cable insertion and retention.



Key specifications include a voltage rating of 50V, an operating temperature range of -25°C to 85°C, and UL94 V-0 flammability rating for the housing and actuator materials. Contacts are gold-plated phosphor bronze for reliable electrical performance. The connector also includes solder retention features for secure mounting on the PCB.



Typical applications include consumer electronics, portable devices, and any compact design requiring a reliable, space-saving interconnect solution for FFC cables. The right-angle orientation helps in low-profile board-to-cable connections.

5022442430 Quick Information

Product Type: FFC Connector
Series: 502244
Canonical Name: FFC Connector, Bottom Contacts, 24 Positions, 0.5mm Pitch, Surface Mount, Right Angle
Subcategory: FFC, FPC Connector Assemblies

5022442430 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5022442430 Estimated Pricing

Qty Low High
1+ $1.60 $1.60
10+ $1.37 $1.37
25+ $1.22 $1.22
100+ $1.16 $1.16
250+ $1.09 $1.09
500+ $1.04 $1.04
1,000+ $0.98 $0.98
2,500+ $0.92 $0.92
5,000+ $0.88 $0.88

Estimated market price range - modelled values for guidance only, not live distributor offers.

5022442430 Features

  • 24 positions with 0.5mm pitch.
  • Surface mount right angle termination.
  • Gold-plated phosphor bronze contacts.
  • Zero insertion force (ZIF) flip lock.
  • Solder retention for secure mounting.

5022442430 Applications

  • Ideal for FFC cable assemblies.
  • Used in portable electronic devices.
  • Suitable for compact board-to-cable connections.
  • Applications requiring reliable interconnect.

5022442430 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

24 positions.

What is the pitch of this FFC connector?

0.50 mm.

What is the voltage rating?

50 V.

What mounting type is this connector?

Surface Mount, Right Angle.

What is the operating temperature range?

-25°C to 85°C.

What is the contact finish?

Gold.

Does this connector have a locking feature?

Yes, flip lock mechanism.
