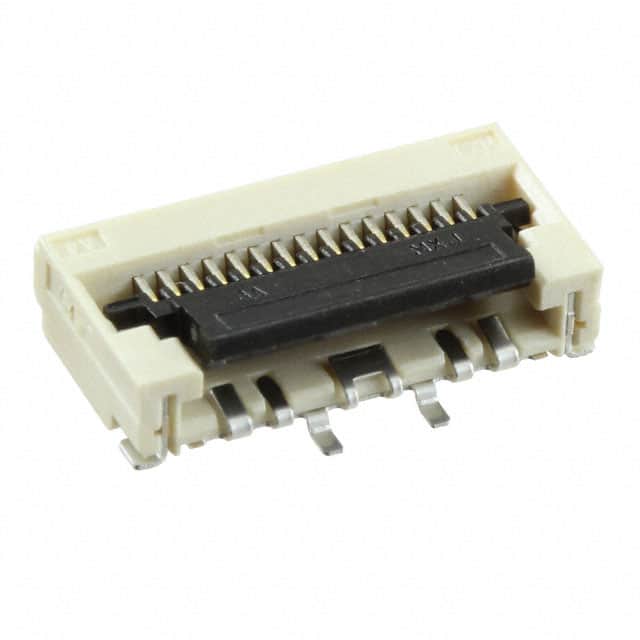

5022441530 FFC connector with 15 positions, 0.5mm pitch, right angle surface mount. Gold-plated phosphor bronze contacts, rated 50V, -25°C to 85°C.
Mfr Part #:

5022441530

Available from 1 distributors
Mfr Name: Molex
Molex
FFC connector with 15 positions, 0.5mm pitch, right angle surface mount. Gold-plated phosphor bronze contacts, rated 50V, -25°C to 85°C.
✓ Total Stock: 74 pcs
$ Price Range: $0.70 - $1.26

5022441530 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
74 pcs
On Request
74 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5022441530 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Locking Feature
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

5022441530 Description

Short technical summary and product information.

The Molex 5022441530 is a 15-position FFC connector with a 0.5mm pitch, designed for surface mount, right angle mounting. It features gold-plated phosphor bronze contacts for reliable electrical performance. The connector is rated for 50V and operates over a temperature range of -25°C to 85°C. The housing is made of liquid crystal polymer (LCP) with glass filling, and the actuator is glass-filled polyamide (PA) nylon. It includes solder retention and zero insertion force (ZIF) with a flip lock mechanism, supporting FFC cables up to 0.30mm thick. The connector is UL94 V-0 rated for flammability.

5022441530 Quick Information

Product Type: FFC/FPC Connector
Canonical Name: Molex 5022441530 FFC Connector, 15 Positions, 0.5mm Pitch, Right Angle, Surface Mount
Subcategory: FFC/FPC Connector Assembly

5022441530 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5022441530 Estimated Pricing

Qty Low High
1+ $1.26 $1.26
10+ $1.07 $1.07
25+ $0.96 $0.96
100+ $0.91 $0.91
250+ $0.85 $0.85
500+ $0.81 $0.81
1,000+ $0.77 $0.77
2,500+ $0.72 $0.72
5,000+ $0.70 $0.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

5022441530 Features

  • 15 positions with 0.5mm pitch.
  • Right angle surface mount design.
  • Gold-plated phosphor bronze contacts.
  • Supports FFC cables up to 0.30mm thick.
  • Zero insertion force (ZIF) with flip lock.

5022441530 Applications

  • Used in compact consumer electronics.
  • Suitable for high-density interconnects.
  • Ideal for FFC cable termination in tight spaces.

5022441530 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

15 positions.

What is the pitch?

0.50mm (0.020in).

What is the voltage rating?

50V.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-25°C to 85°C.

What is the contact finish?

Gold.

Does this connector support zero insertion force?

Yes, it features zero insertion force (ZIF) with solder retention.
