Mfr Part #:

5022250801

Name: 5022250801
Brand: Molex
SKU: 5022250801

Mfr Name: Molex

Description:

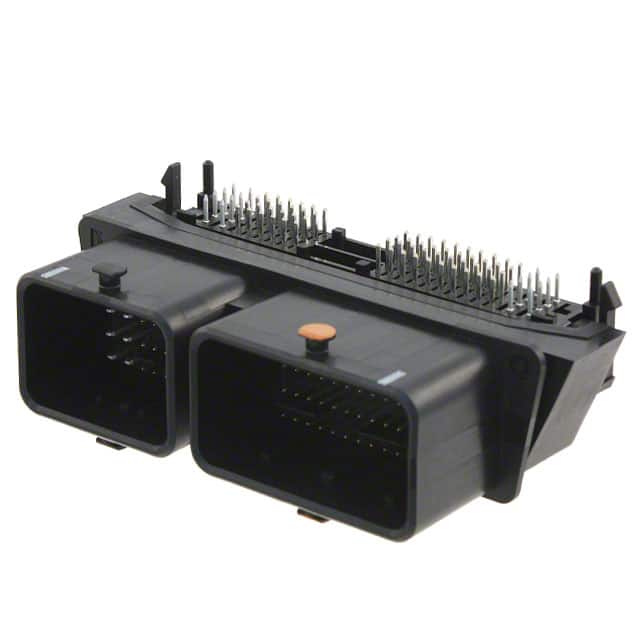

CONN HEADER BRD EDGE 80POS

Stock on Request

5022250801 Description

Short technical summary and product information.

CONN HEADER BRD EDGE 80POS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Male Pin
Fastening Type	Latch Lock
Features	Board Guide, Board Lock, Mounting Flange
Insulation Color	Black
Insulation Height	0.980" (24.90mm)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Board Edge, Through Hole, Right Angle
Number of Positions	80 (48 + 32)
Number of Positions Loaded	All
Number of Rows	4
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
