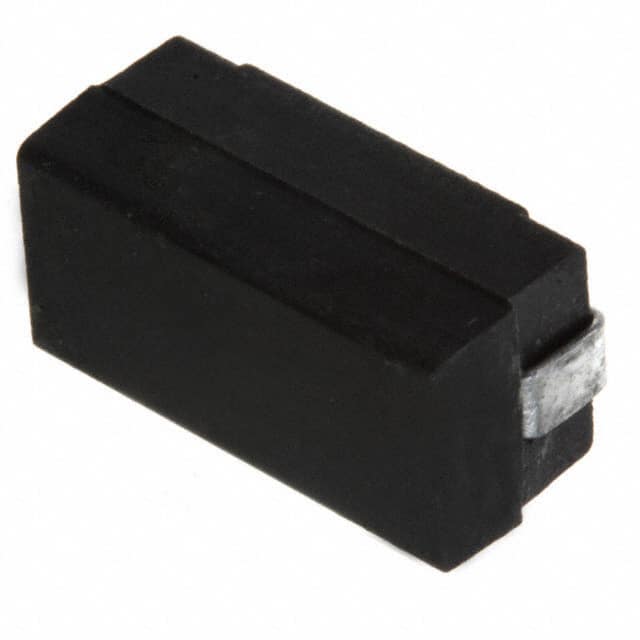

5022-751J The API Delevan Inc. 5022-751J is a fixed inductor with 750nH inductance and a current rating of 1.425A. It features a surface mount package.
Mfr Part #:

5022-751J

Available from 1 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
The API Delevan Inc. 5022-751J is a fixed inductor with 750nH inductance and a current rating of 1.425A. It features a surface mount package.
✓ Total Stock: 200 pcs

5022-751J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5022-751J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Tape & Reel
Tolerance
Width
View Similar Products (0)

5022-751J Description

Short technical summary and product information.

The API Delevan Inc. 5022-751J is a fixed inductor designed for surface mount applications. It offers an inductance value of 750 nH with a tight tolerance of ±5%. This component is rated for a current of 1.425 A and has a maximum DC resistance of 180 mOhm.



With an operating temperature range of -55°C to 125°C, the 5022-751J is suitable for various environmental conditions. Its dimensions are 13.21mm in length and 6.35mm in width, with a height of 5.84mm. The inductor is unshielded and constructed from phenolic material.



Key electrical characteristics include a Q factor of 50 at 25MHz and a self-resonant frequency of 230MHz, making it suitable for RF applications. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.

5022-751J Quick Information

Product Type: Fixed Inductor
Series: 5022
Canonical Name: API Delevan Inc. 5022-751J Fixed Inductor
Subcategory: Fixed Inductors

5022-751J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5022-751J Features

  • 750nH inductance with ±5% tolerance.
  • Rated for 1.425A current.
  • Low 180mOhm maximum DC resistance.
  • Surface mountable package.
  • Operates from -55°C to 125°C.

5022-751J Applications

  • Suitable for RF signal filtering.
  • Used in power supply circuits.
  • Ideal for general electronic applications.
  • Component for signal conditioning.

5022-751J FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the 5022-751J?

750 nH with ±5% tolerance.

What is the current rating?

1.425 A.

What is the DC resistance?

180 mOhm maximum.

What is the self-resonant frequency?

230 MHz.

What is the operating temperature range?

-55°C to 125°C.

What is the package type?

Surface mount, nonstandard package, supplied in tape and reel.

What is the Q factor?

50 at 25 MHz.
