| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
81,065 pcs
|
81065 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Withstanding Voltage | |
| Features | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Rated Voltage | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

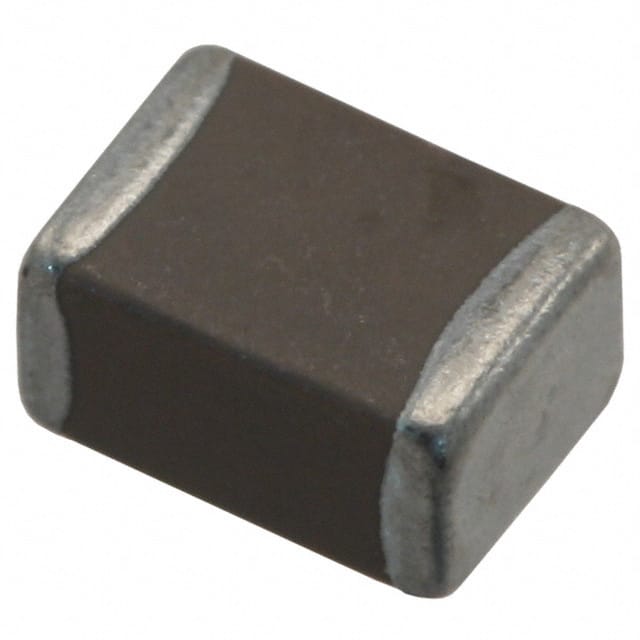

The 501S43W104KV4E is a high voltage multilayer ceramic capacitor (MLCC) from Johanson Dielectrics Inc. It offers a capacitance of 0.1 µF with a rated voltage of 500 V DC. The capacitor features an X7R temperature coefficient, providing a capacitance change of ±15% over the operating temperature range of -55°C to +125°C. Tolerance is ±10%.
This MLCC is designed for general purpose applications and is housed in a standard 1812 (4532 Metric) surface mount package measuring 4.57 mm x 3.17 mm with a maximum thickness of 2.80 mm. The termination style is SMD/SMT, suitable for automated assembly.
The high voltage rating (500 V) makes this component suitable for power supply filtering, DC-DC converters, and other circuits requiring voltage handling beyond standard low-voltage MLCCs. The X7R dielectric offers stable performance over a wide temperature range, balancing capacitance density and temperature stability.
0.1 µF.
500 V DC.
±10%.
X7R.
-55°C to +125°C.
1812 (4532 Metric) — 4.57 mm x 3.17 mm, max thickness 2.80 mm.
Surface mount, MLCC.
