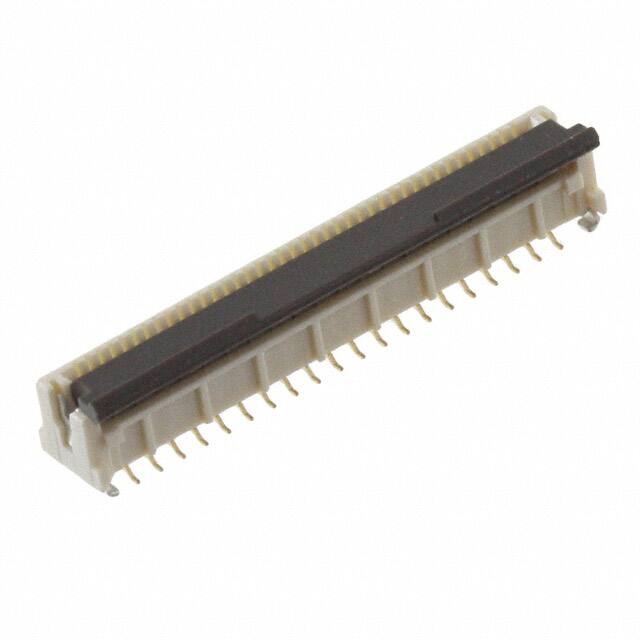

5019514010 Molex 5019514010 is a 40-position, 0.5mm pitch FFC/FPC connector with vertical surface mount orientation and flip lock actuation.
Mfr Part #:

5019514010

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 5019514010 is a 40-position, 0.5mm pitch FFC/FPC connector with vertical surface mount orientation and flip lock actuation.
✓ Total Stock: 2 pcs

5019514010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5019514010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Connector Type
Contact Finish
Contact Material
FFC, FCB Thickness
Flat Flex Type
Height Above Board
Housing Material
Lead Spacing
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

5019514010 Description

Short technical summary and product information.

The Molex 5019514010 is a 40-position FFC/FPC connector designed for vertical surface mount applications. It features a 0.50mm pitch and accepts both FFC and FPC cables with straight or tapered ends. The connector uses a flip lock mechanism for secure cable retention and is rated for 50V operation.



The housing is made of liquid crystal polymer (LCP) with glass filling, rated UL94 V-0 for flammability. Contacts are copper alloy with gold finish. The actuator is polyamide (PA9T) with glass filling. Operating temperature range is -25°C to 85°C. This connector is suitable for compact electronic assemblies requiring a reliable, low-profile interconnect solution.

5019514010 Quick Information

Product Type: FFC/FPC Connector Assembly
Canonical Name: Molex 5019514010 FFC/FPC Connector, 40 Positions, 0.5mm Pitch, Vertical, Surface Mount
Subcategory: Vertical - 1 Sided

5019514010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5019514010 Features

  • 40 positions with 0.50mm pitch spacing.
  • Vertical surface mount orientation with solder termination.
  • Flip lock actuator for secure cable retention.
  • Gold plated copper alloy contacts.
  • Rated for 50V DC operation.

5019514010 Applications

  • Used in compact consumer electronics assemblies.
  • Suitable for FFC and FPC cable interconnections.
  • Ideal for space-constrained vertical board-to-cable connections.

5019514010 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the Molex 5019514010 connector?

The pitch is 0.50mm (0.020").

How many positions does the Molex 5019514010 have?

It has 40 positions.

What is the mounting type for this connector?

Surface mount with solder termination.

What is the voltage rating of the Molex 5019514010?

50V.

What is the operating temperature range?

-25°C to 85°C.

What locking feature does this connector use?

Flip lock.

What is the material flammability rating?

UL94 V-0.
