| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

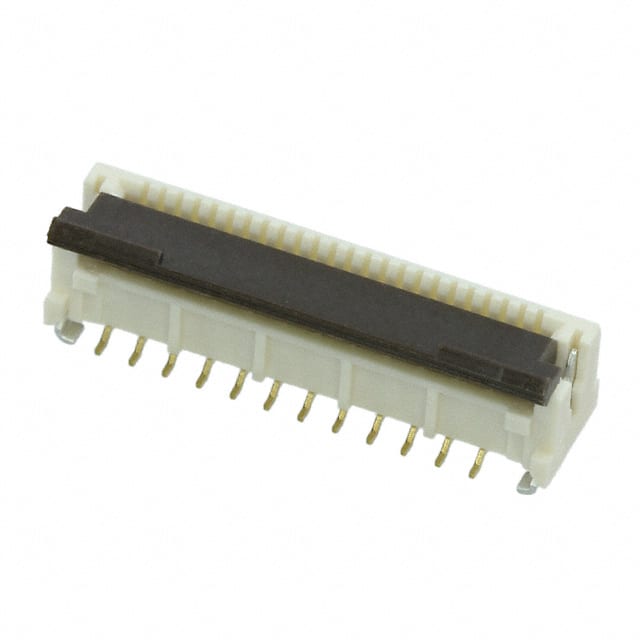

The Molex 5019512410 is a 24-circuit, 0.50mm pitch FFC/FPC connector from the Easy-On series. It features a vertical orientation and surface mount termination, making it ideal for compact, space-constrained designs. The connector uses a flip lock actuator for secure cable retention and supports both straight and tapered cable end types. Contacts are made of copper alloy with gold plating on both mating and termination surfaces, ensuring reliable electrical performance. The housing is constructed from liquid crystal polymer (LCP) with glass filling, and the actuator is polyamide (PA9T) with glass filling. The operating temperature range is -25°C to +85°C, and the flammability rating is UL94 V-0. Electrical ratings include 50V AC (RMS)/DC maximum voltage and 0.4A maximum current per contact. The connector is rated for 20 mating cycles and has a mated height of 4.05mm. Packaging is embossed tape on reel for automated assembly.
24 positions.
0.50mm.
0.4A maximum per contact.
50V AC (RMS)/DC maximum.
Surface mount.
-25°C to +85°C.
Flip lock actuator.
