| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
588 pcs
|
588 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Connector/Contacts | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

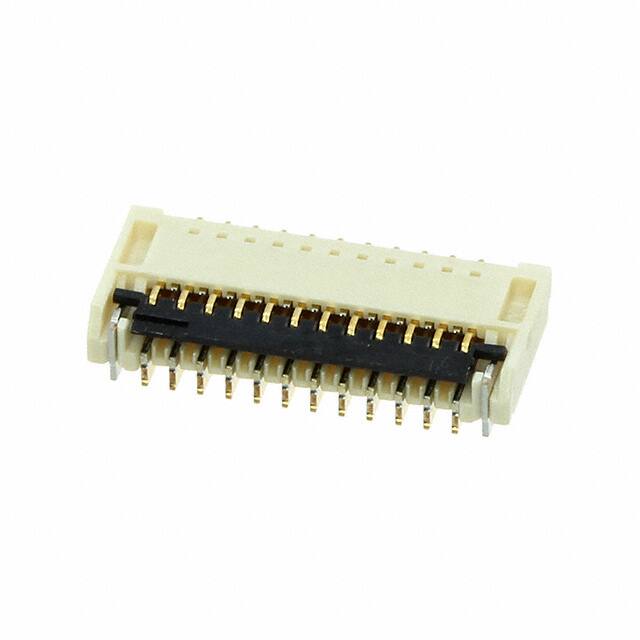

The Molex 5019122390 is a 23-position FPC connector designed for flexible printed circuit applications. It features a 0.30mm pitch and bottom contact configuration, making it suitable for high-density interconnects. The connector is surface mount with a right-angle orientation, enabling compact PCB layouts. A flip lock actuator ensures secure cable retention and easy mating without additional hardware.
Electrical specifications include a 50V voltage rating. The contacts are made of gold-plated copper alloy for reliable conductivity and corrosion resistance. The housing and actuator are constructed from glass-filled polymer with a UL94 V-0 flammability rating, ensuring fire safety in electronic assemblies. The operating temperature range is -20°C to 85°C, supporting a wide variety of environments.
Design features include solder retention pads for improved mechanical stability during reflow soldering. The connector accepts FPC cables with a thickness of 0.20mm. This connector is ideal for space-constrained applications where low-profile and high-density connections are required, such as in mobile devices, displays, and portable electronics.
The connector has 23 positions.
The pitch is 0.30mm (0.012").
The voltage rating is 50V DC.
Surface Mount, Right Angle.
-20°C to 85°C.
Gold plating on copper alloy contacts.
UL94 V-0 for the housing and actuator.
