| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
225 pcs
|
225 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

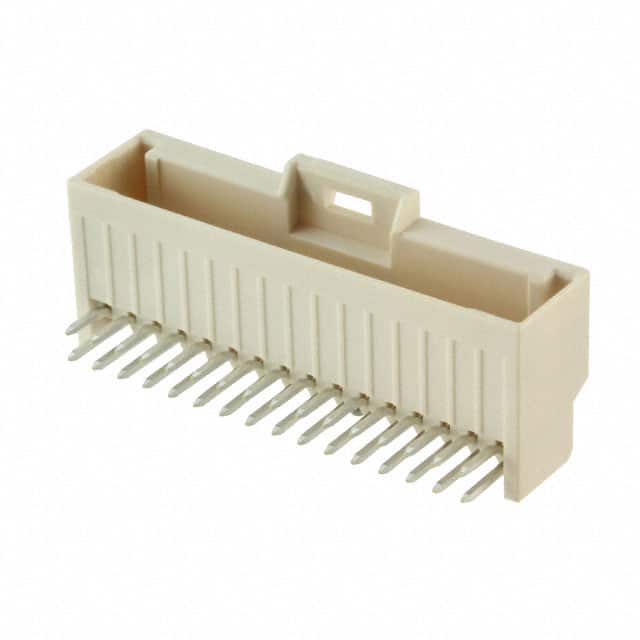

The Molex 5018763240 is a 32-position rectangular connector header designed for board-to-cable/wire applications. It features a 2.00mm pitch and 2 rows of male pin contacts arranged in a right-angle orientation for through-hole mounting. The header is fully shrouded with a 4-wall design and includes a latch holder fastening system for secure mating.
Constructed with brass contacts plated with tin and an insulation body of glass-filled Nylon 6/6 (PA66) in natural color, the connector offers reliable electrical and mechanical performance. The insulation height is 8.30mm and the contact length is 3.20mm. The material flammability rating is UL94 V-0, indicating good flame retardant properties.
This header is suitable for use in various electronic assemblies requiring a compact, right-angle interconnect solution. The through-hole solder termination ensures a robust mechanical bond to the printed circuit board.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.69 | $2.69 |
| 10+ | $2.45 | $2.45 |
| 25+ | $2.32 | $2.32 |
| 90+ | $2.15 | $2.15 |
| 270+ | $1.88 | $1.88 |
| 540+ | $1.82 | $1.82 |
| 1,035+ | $1.62 | $1.62 |
| 2,520+ | $1.52 | $1.52 |
| 5,040+ | $1.42 | $1.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
It has 32 positions arranged in 2 rows.
Through hole, right angle.
Yes, it is shrouded with a 4-wall design.
The insulation is glass-filled Nylon 6/6 (PA66) with a UL94 V-0 flammability rating.
The contacts are made of brass with a tin finish.
